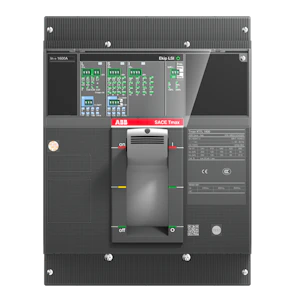

XT7L 800 Ekip Dip LS/I In=800A 3p F F
Product number
4380679
XT7, L-120kA@415V, In=800, 3 pol, EL, Ekip Dip LS/I, Un=690 volt AC, F. Eff. Br
XT7L med elektroniske vern Ekip LS/I, 3P - Justerbart for kortsluttning og overlast med tidsforsinkelse
Product details
Technical specifications
Rated permanent current Iu800 A
Rated voltage690 - 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz120 kA
Overload release current setting320 - 800 A
Adjustment range short-term delayed short-circuit release800 - 8000 A
Adjustment range undelayed short-circuit release800 - 8000 A
Power loss24 W
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionno
Type of electrical connection of main circuitBolt connection
Suitable for DIN rail (top hat rail) mountingno
DIN rail (top hat rail) mounting optionalno
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Product codes
SAPDJV801
El number4380679
Product number4380679
GTIN/EAN8056221010085
Manufacturer part number1SDA100954R1
Vendor material number1SDA100954R1
Basic information
Package measurements (L x W x H)166 x 210 x 268 mm
Package volume9.342 l
Package weight9.7 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginIT Italy
Customs tariff code85362000
