KSF SKJØTEHYLSE KS 400
Product number
2014078

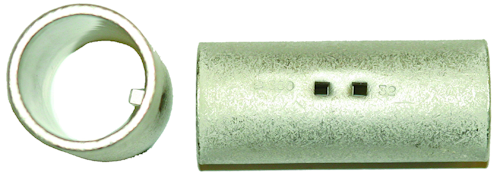

UISOL.SKJØTEHYLSE,KOBBER
Fortinnet elektrolytisk kobberrør, med kabelstopp /inspeksjonshull.
Product codes
Basic information
Technical specifications
Documents (0)
| SAP | GBW169 |
|---|---|
| PLC | 2014078 |
| STK | 2014078 |
| GTIN/EAN | 7070920007024 |
| Manufacturer part number | KSF 400 |
| Vendor material number | 2014078 |
| Package measurements (L x W x H) | 185 x 130 x 185 mm |
| Package volume | 4.449 l |
| Package weight | 5.25 kg |
| Package units | 1 |
| Usage quantity | 1 |
| UNSPSC | 39121409 |
| Brand | ABIKO |
| Colour insulation | Not applicable |
| Insulation | None |
| Material | Copper |
| Model | Standard version |
| Nominal cross section | 400 ... 400 mm² |
| Number of branches | 0 |
| Oil stop/centre bar | false |
| Suitable for fine strand conductors | true |
| Suitable for flat conductors | false |
| Suitable for high temperatures (to 650 °C) | false |
| Suitable for insulated varnish | false |
| Suitable for round conductors | true |
| Suitable for solid conductors | false |
| Suitable for stranded conductors | true |
| Surface protection | Tinned |
| Type of connection | End connector |
| Voltage level | Up to 35 kV |
No documents available
