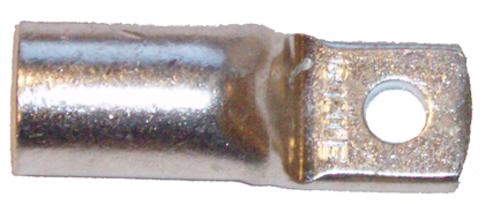

SPESIALKABELSKO, SMAL LASK KRTS 150-10
Product number
2014178
UISOL.SMAL RØRKABELSKO,KOBBER
Fortinnet elektrolytisk kobberrør, med- eller uten inspeksjonshull.
Product codes
Basic information
Technical specifications
Documents (0)
| SAP | GBW171 |
|---|---|
| PLC | 2014178 |
| STK | 2014178 |
| GTIN/EAN | 7070920016934 |
| Manufacturer part number | KRTS 150-10 |
| Vendor material number | 2014178 |
| Package measurements (L x W x H) | 185 x 100 x 125 mm |
| Package volume | 2.313 l |
| Package weight | 4.46 kg |
| Package units | 1 |
| Usage quantity | 1 |
| UNSPSC | 39121405 |
| Brand | ABIKO |
| AWG-range | 300 ... 300 |
| According to DIN | false |
| Bolt dimension (metric) | 10 |
| Flange shape | Ring shape |
| For pull protected connections | true |
| Insulated | false |
| Insulation | None |
| Material | Copper |
| Nominal cross section | 150 ... 150 mm² |
| Reel/roll packaging | false |
| Stud size (imperial) | 10 |
| Suitable for fine strand conductors | true |
| Suitable for flat conductors | false |
| Suitable for high temperatures (to 650 °C) | false |
| Suitable for insulated varnish | false |
| Suitable for round conductors | true |
| Suitable for solid conductors | true |
| Suitable for stranded conductors | true |
| Surface protection | Tinned |
No documents available
