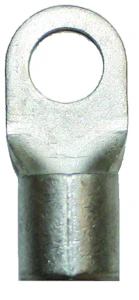

Uisolert Ringkabelsko B 35-8
Product number
2016722
Kabelsko, 35mm² for M8
Fortinnet kobber med sveiset hals, tynnvegget kabelsko (DIN-46234). Pressmetode : Dorpressing
Product details
Technical specifications
Flange shapeRing shape
InsulationNone
Nominal cross section35 - 35 mm²
Reel/roll packagingno
Min. AWG-size2
Max. AWG-size2
Suitable for solid conductorsyes
Suitable for stranded conductorsyes
Suitable for fine strand conductorsyes
Suitable for high temperatures (to 650 °C)no
Suitable for insulated varnishno
Suitable for round conductorsyes
Suitable for flat conductorsno
For pull protected connectionsyes
MaterialCopper
Product codes
SAPDMP114
El number2016722
Product number2016722
GTIN/EAN7070920008434
Manufacturer part numberB 35- 8 SH
Vendor material number2016722
Basic information
Package measurements (L x W x H)34 x 16 x 12 mm
Package volume0.007 l
Package weight0.01 kg
Base uniteach
Package units50
Usage quantity–
UNSPSC32000000
BrandABIKO
Country of OriginTW Taiwan
Customs tariff code85369010
