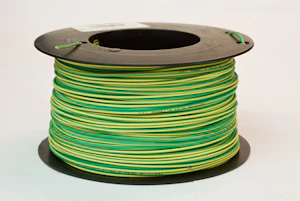

TEXILINE 1,0MM² G/G MTR. AMO SPESIALKABEL
Product number
1048425
Halogenfri koblingsledning, mangetrådet og fortinnet 0,6/1kV
TEXILINE HF ER EN 125GR C, 0,6/1kV HALOGENFRI, FLAMMEHEMMET OG FORTINNET KOBLINGSLEDNING SPESIELT DESIGNET FOR SKIP OG OFFSHORE BRUK. GODKJENT AV DET NORSKE VERITAS
Product details
Technical specifications
Conductor materialCopper
Conductor surfaceTinned
Nominal cross section conductor1 mm²
AWG size18
Nominal cross section conductor (AWG)1.97 kcmil
Diameter conductor1.25 mm
Conductor categoryClass 5 = flexible
Number of cores1
Twisted coresfalse
Material core insulationOther
Specification core insulationOther
Core identificationColour
Core colourGreen/yellow
Max. conductor temperature90 °C
Screenfalse
Product codes
SAPGAF185
PLC1048425
STK1048425
GTIN/EAN7340060504272
Manufacturer part number7340060504272
Vendor material number1048425
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight0.012 kg
Base unitm
Package units200
Usage quantity–
UNSPSC26121500
BrandAMOKABEL
