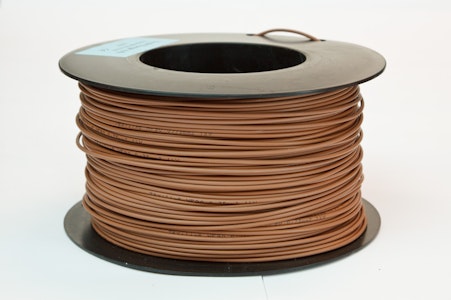

TEXILINE 1,5MM² BRUN MTR. AMO SPESIALKABEL
Product number
1048436
TEXILINE HF 1,5MM BRUN
TEXILINE HF ER EN 125GR C, 0,6/1kV HALOGENFRI, FLAMMEHEMMET OG FORTINNET KOBLINGSLEDNING SPESIELT DESIGNET FOR SKIP OG OFFSHORE BRUK. GODKJENT AV DET NORSKE VERITAS
Product codes
Basic information
Technical specifications
Documents (1)
| SAP | GBW189 |
|---|---|
| PLC | 1048436 |
| STK | 1048436 |
| GTIN/EAN | 7340060504388 |
| Manufacturer part number | 7340060504388 |
| Vendor material number | 1048436 |
| Package measurements (L x W x H) | 0 x 0 x 0 mm |
| Package volume | 0 l |
| Package weight | 0.1 kg |
| Package units | 150 |
| Usage quantity | 1 |
| UNSPSC | 26121500 |
| Brand | AMOKABEL |
| AWG size | 16 |
| Armouring/reinforcement | None |
| Colour outer sheath | None |
| Conductor category | Class 5 = flexible |
| Conductor material | Copper |
| Conductor surface | Tinned |
| Core colour | Brown |
| Core identification | Colour |
| Diameter conductor | 1.5 mm |
| Drain wire | false |
| Euro class acidity according to EN 13501-6 | None |
| Euro class flaming droplets/particles according to EN 13501-6 | None |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Halogen free (according to EN 60754-1/2) | true |
| Low smoke (according to EN 61034-2) | true |
| Low temperature resistant (according to EN 60811-504+505+506) | false |
| Material core insulation | Other |
| Material outer sheath | None |
| Max. conductor temperature | 90 °C |
| Min. permitted bending radius, stationary application/permanent installation | 11.6 mm |
