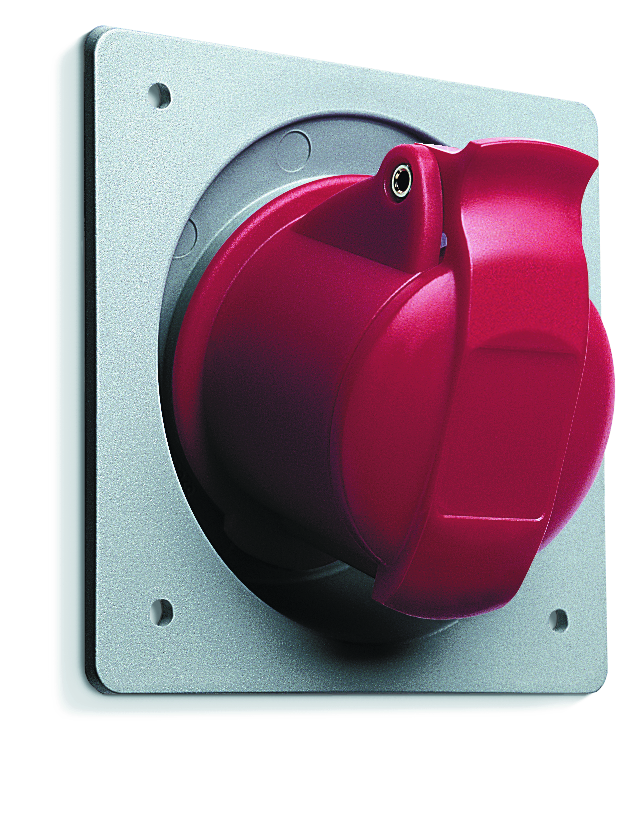

IPS AUSU 332RAU9 IP44
Product number
1547442
IPS AUSU 332RAU9 PANEL-STIKKONTAKT IP44
Industri innfelt stikkontakt med skråflens 32A, 3P+J, 9h, 200-250V 50-60Hz
Normer: EN 60309-1 og EN 60309-2.
Kapslingsmateriale: Polyamid.
Innsatsmateriale: Polyamid.
Product details
Technical specifications
IEC-amperage32 A
Amperage according to UL/CSA (for UL-version)32 A
Voltage according to EN 60309-2230 V (50+60 Hz) blue
Rated voltage200 - 250 V
Rated frequency50 - 60 Hz
Number of poles4
Clock hour position9 h
Identification colourBlue
RAL-number7001
Degree of protection (IP)IP44
Connection systemScrewed terminal
Insert directionAngled
MaterialPlastic
Surface treatment contactsUntreated
Military modelno
Product codes
SAPGAQ174
El number1547442
Product number1547442
GTIN/EAN7392696932769
Manufacturer part number2CMA193276R1000
Vendor material number2CMA193276R1000
Basic information
Package measurements (L x W x H)114 x 110 x 110 mm
Package volume1.379 l
Package weight0.26 kg
Base uniteach
Package units10
Usage quantity1
UNSPSC39121413
BrandAMPHENOL
Country of OriginCZ Czech Republic
Customs tariff code85366900
