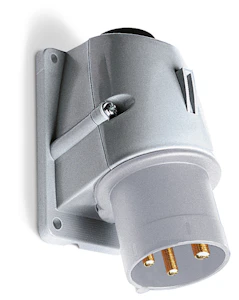

IPS AVI 216BS12 IP44
Product number
1542367
IPS AVI 216BS12 APPARAT INNTAK IP44
Industri apparatinntak for vegg 16A, 2P+J, 12h, til bruk ved isolertrafo
Normer: EN 60309-1 og EN 60309-2.
Kapslingsmateriale: Polyamid.
Innsatsmateriale: Polyamid.
Kabelinnføring ovenfra, leveres med membrannippel.. Knock-out Ø23 i bunn.
Når apparatinntaket ikke er i bruk kan det beskyttes/tettes med beskyttelseshette GP 216
Product details
Technical specifications
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)16 A
Voltage according to EN 60309-2After isolating transformer
Rated frequency50 - 60 Hz
Number of poles3
Clock hour position12 h
Identification colourGrey
RAL-number7012
Degree of protection (IP)IP44
Connection systemScrewed terminal
Construction typeSurface mounted device plug
Phase inverterno
Insert directionAngled
MaterialPlastic
Surface treatment contactsUntreated
Product codes
SAPGAQ211
El number1542367
Product number1542367
GTIN/EAN7392696932929
Manufacturer part number2CMA193292R1000
Vendor material number2CMA193292R1000
Basic information
Package measurements (L x W x H)72 x 66 x 110 mm
Package volume0.523 l
Package weight0.15 kg
Base uniteach
Package units10
Usage quantity1
UNSPSC39121413
BrandAMPHENOL
Country of OriginCZ Czech Republic
Customs tariff code85366900
