IPS HUVS 416RAU2W
Product number
1561927

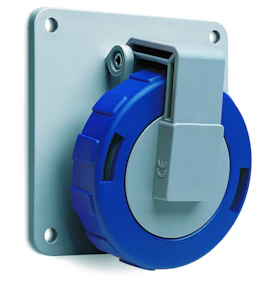

IPS TOUGH&SAFE HUVS 416RAU2W PANEL-STIKKONTAKT VINKLET IP67
Industri innfelt stikkontakt i Tough&Safe serien med skråflens 16A, 3P+N+J, 6h, 200/346-240/415V 50-60Hz
Normer: EN 60309-1 og EN 60309-2.
Kapslingsmateriale: Termoplastisk polyester.
Innsatsmateriale: Polyamid.
Product details
Technical specifications
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)16 A
Voltage according to EN 60309-250-500 V (100-300 Hz) green
Rated voltage50 - 500 V
Rated frequency50 - 60 Hz
Number of poles5
Clock hour position2 h
Identification colourGreen
RAL-number7001
Degree of protection (IP)IP67
Connection systemScrewed terminal
Insert directionAngled
MaterialPlastic
Surface treatment contactsUntreated
Military modelno
Product codes
SAPGAQ866
El number1561927
Product number1561927
GTIN/EAN7392696670241
Manufacturer part number2CMA167024R1000
Vendor material number2CMA167024R1000
Basic information
Package measurements (L x W x H)104 x 95 x 99 mm
Package volume0.978 l
Package weight0.18 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121413
BrandAMPHENOL
Country of OriginCZ Czech Republic
Customs tariff code85366900
