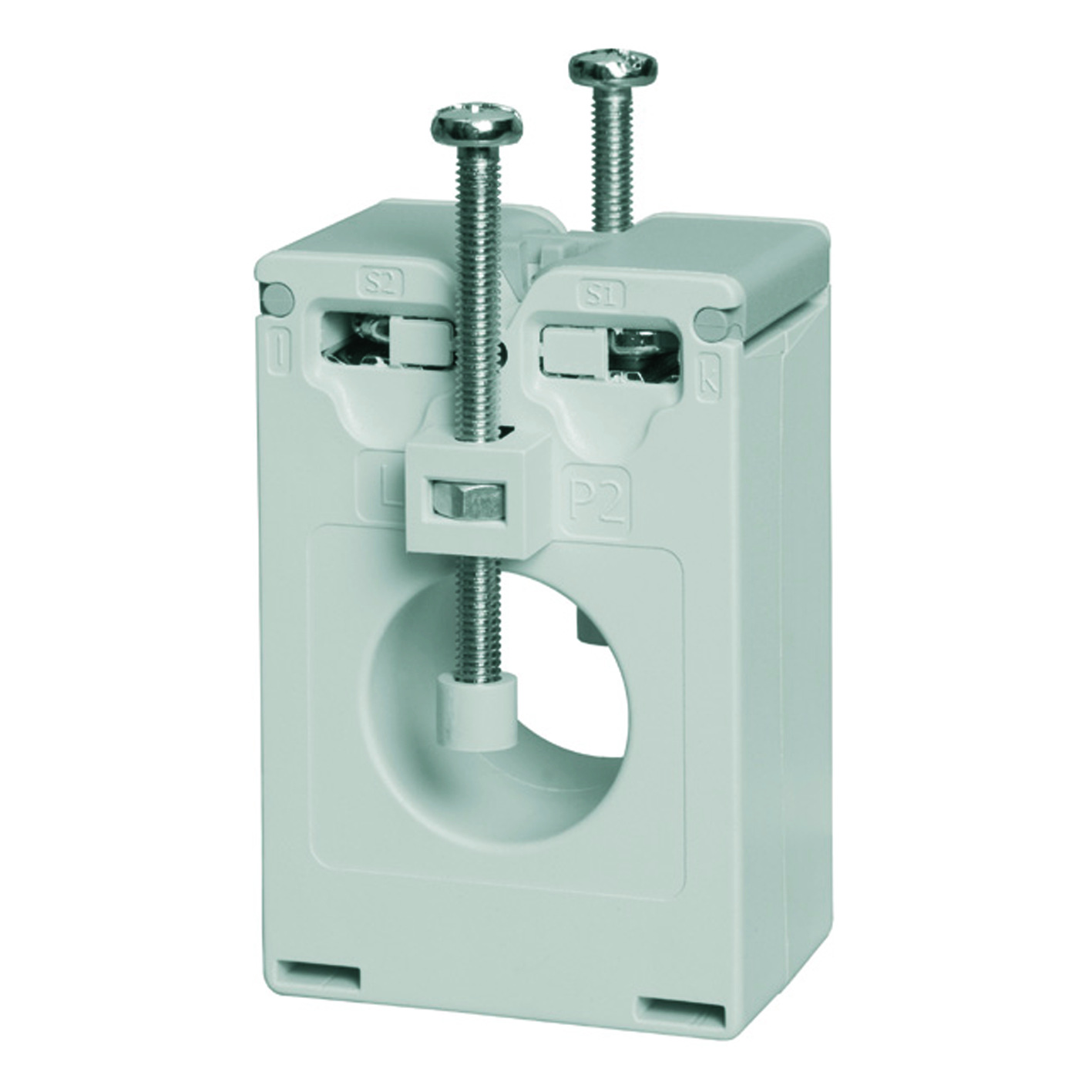

CURRENT TRANSFORMER CG CTD1X1605AXXX
Product number
8200439
CTD1X1605AXXX Strømtransformator
Standard strømtransformator med omsetningsforhold 160/5A . Sirkulær lysåpning ø=23,3mm. Dobbelt sett tilkoblingsterminaler. Leveres med DIN-skinne feste.
Product details
Technical specifications
ModelThrough-feed current converter
Primary rated current160 A
Secondary rated current5 A
Secondary rated apparent power2.5 VA
Overcurrent limiting factorFS 5
With shock protectionfalse
Opening diameter23.3 mm
Snap mountingtrue
With copper railfalse
Number of primary inputs1
Accuracy class0.5
Calibratedfalse
Secondary connectionScrew connection
Product codes
SAPCFJ152
PLC8200439
STK8200439
GTIN/EAN8030956040227
Manufacturer part numberCTD1X1605AXXX
Vendor material numberCTD1X1605AXXX
Basic information
Package measurements (L x W x H)100 x 66 x 60 mm
Package volume0.396 l
Package weight0.16 kg
Base uniteach
Package units1 / 40
Usage quantity–
UNSPSC39121003
BrandCARLO GAVAZZI
