MYK START/STOPP 400V 1.1KW
Product number
4164002

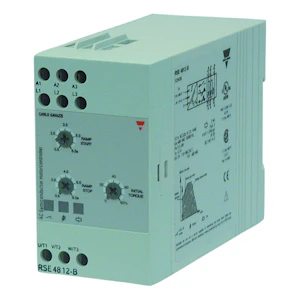

RSE4003-B Mykstarter
Mykstarter, myk start og stopp for 44 volt og motorstørrelse 1,1kW
Product details
Technical specifications
Rated operation current Ie at 40 °C Tu3 A
Rated operating voltage Ue340 - 460 V
Rated power three-phase motor, inline, at 230 V0 kW
Rated power three-phase motor, inline, at 400 V1.5 kW
Rated power three-phase motor, inside delta, at 230 V0 kW
Rated power three-phase motor, inside delta, at 400 V0 kW
FunctionSingle direction
Internal bypassyes
With displayno
Torque controlno
Rated surrounding temperature without derating40 °C
Rated control supply voltage AC 50 Hz93.5 - 552 V
Rated control supply voltage AC 60 Hz93.5 - 552 V
Rated control supply voltage DC20.4 - 126.5 V
Voltage type for actuatingAC/DC
Product codes
SAPCMD771
El number4164002
Product number4164002
GTIN/EAN5350035324318
Manufacturer part numberRSE4003-B
Vendor material number4164002
Basic information
Package measurements (L x W x H)50 x 85 x 120 mm
Package volume0.51 l
Package weight0.269 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandCARLO GAVAZZI
Country of OriginIT Italy
