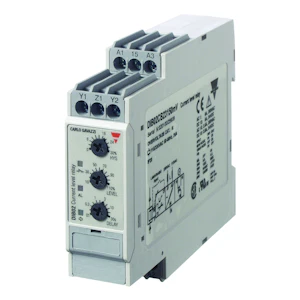

STRØMMÅLERELE AC/DC
Product number
4367568
DIB02CB23150MV Strømrelé
Strømrele for overstrøm/understrøm. Valgbart måleområde. Programmerbar funksjon samt justerbar tidsforsinkelse og hysterese. 1 releutgang med vekselkontakt. Hjelpespenning 115/230VAC. For DIN-skinne montasje.
Product details
Technical specifications
Type of electric connectionScrew connection
With detachable clampsno
Current measuring range0.5 - 500 A
Single-phase under current possibleyes
Three-phase under current possibleno
Single-phase overcurrent possibleyes
Three-phase overcurrent possibleno
Single-phase hysteresis possibleyes
Three-phase hysteresis possibleno
Contains function DC-voltage under currentyes
Contains function DC-voltage overcurrentyes
Function DC-current hysteresisyes
Min. adjustable delay-on energization time0.1 s
Max. permitted delay-on energization time30 s
Min. adjustable off-delay time0.1 s
Product codes
SAPCLG508
El number4367568
Product number4367568
GTIN/EAN8030956000283
Manufacturer part numberDIB02CB23150MV
Vendor material number4367568
Basic information
Package measurements (L x W x H)105 x 105 x 27 mm
Package volume0.298 l
Package weight0.14 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandCARLO GAVAZZI
Country of OriginIT Italy
