TIDSRELE MULTIFUNKSJON
Product number
4367266

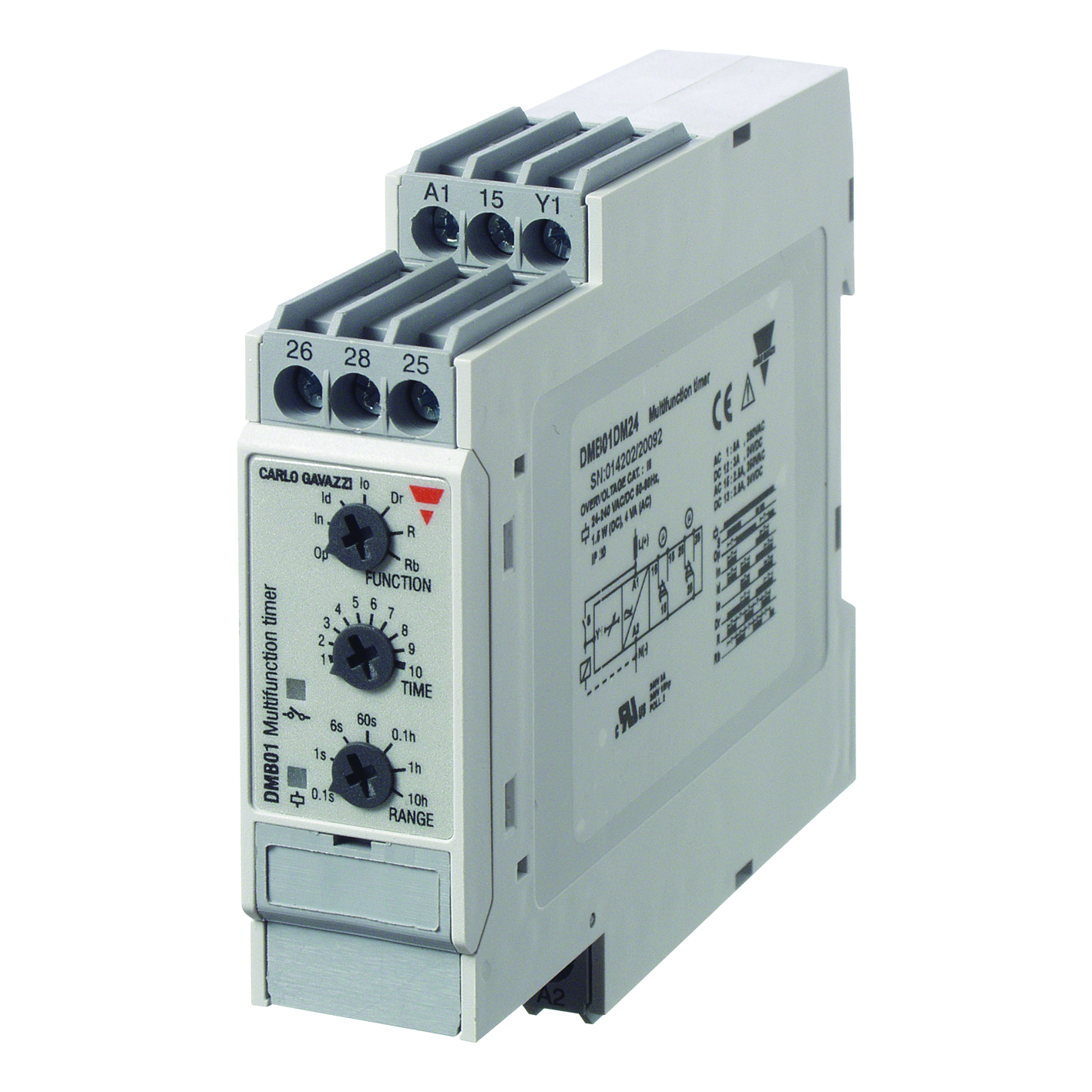

DMB01DM24 Tidsrelé
Multifunksjons tidsrelè med en rekke funksjoner som forsinket innkobling, forsinket utkobling, intervall, pulspunksjoner, taktgiver og blinkfunksoner. Valgbart tidsområde 0,1s-100t. Multispenning 24VDC/24-240VAC. 2 releutgang. 22,5mm for DIN-skinne montasje.
Product details
Technical specifications
Type of electric connectionScrew connection
Suitable for DIN rail (top hat rail) mountingyes
Pluggable on auxiliary contact blockno
Function delay-on energizationyes
Function delay on de-energizationyes
Function floating contact on energizationno
Function floating contact on de-energizationno
Function star-deltano
Function pulse shapingyes
Function flashing, starting with pause, fixed timeno
Function flashing, starting with pulse, fixed timeno
Clock function, starting with pause, variableyes
Clock function, starting with pulse, variableyes
Time range0.1 - 360000 s
Remote operation possibleyes
Product codes
SAPAPZ494
El number4367266
Product number4367266
GTIN/EAN8030956000054
Manufacturer part numberDMB01DM24
Vendor material number4367266
Basic information
Package measurements (L x W x H)10 x 10 x 10 mm
Package volume0.001 l
Package weight1 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandCARLO GAVAZZI
Country of OriginIT Italy
Customs tariff code90309000
