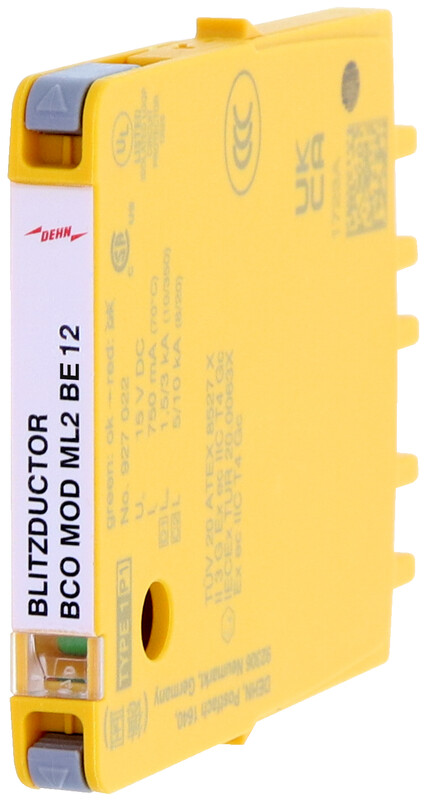

SURGE ARRESTER EQUIPP. DEHNBCO BCO MOD ML2 BE 12
Product number
1606079
Beskyttelsesmodul 12V 2-polet
BLITZDUCTOR. Patron 12 V
Product details
Technical specifications
Max. continuous voltage AC10.6 V
Max. continuous voltage DC15 V
Lightning impulse current (10/350 µs)3 kA
Nominal discharge surge current (8/20)10 kA
Nominal load current0.75 A
Voltage protection level48 V
Voltage protection level core/core48 V
Voltage protection level core/earth48 V
Voltage protection level core/signal ground48 V
Voltage protection level signal ground/protective ground48 V
Limiting frequency1.4 MHz
Mounting methodOn basic element
Number of conductors (without earthing)2
Earthing viaDIN rail (top hat rail)
Assembly width6 mm
Product codes
SAPDLT463
El number1606079
Product number1606079
GTIN/EAN4013364410121
Manufacturer part number927022
Vendor material number927022
Basic information
Package measurements (L x W x H)9 x 120 x 81 mm
Package volume0.087 l
Package weight0.014 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121634
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
