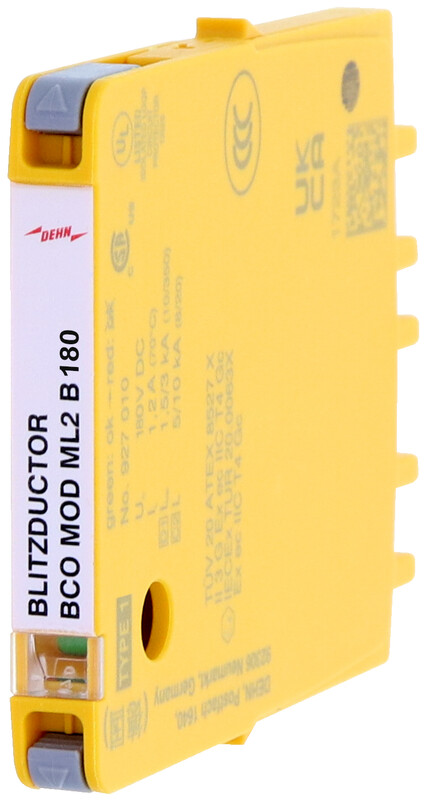

SURGE ARRESTER EQUIPP. DEHNBCO BCO MOD ML2 B 180
Product number
1606082
Beskyttelsesmodul 180V 2-polet
BLITZDUCTOR. Patron 180 V
Product details
Technical specifications
Max. continuous voltage AC127 V
Max. continuous voltage DC180 V
Lightning impulse current (10/350 µs)3 kA
Nominal discharge surge current (8/20)10 kA
Nominal load current1.2 A
Voltage protection level1100 V
Voltage protection level core/core1100 V
Voltage protection level core/earth800 V
Voltage protection level core/signal ground800 V
Voltage protection level signal ground/protective ground800 V
Limiting frequency150 MHz
Mounting methodOn basic element
Number of conductors (without earthing)2
Earthing viaDIN rail (top hat rail)
Assembly width6 mm
Product codes
SAPDLT466
El number1606082
Product number1606082
GTIN/EAN4013364410114
Manufacturer part number927010
Vendor material number927010
Basic information
Package measurements (L x W x H)9 x 120 x 81 mm
Package volume0.087 l
Package weight0.014 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121634
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
