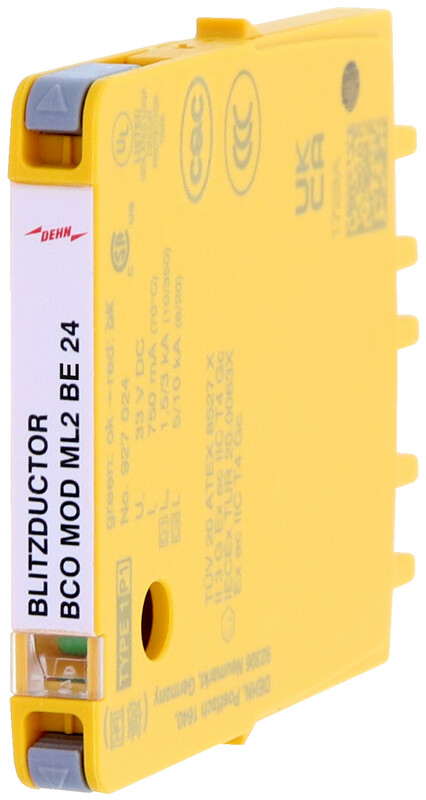

SURGE ARRESTER EQUIPP. DEHNBCO BCO MOD ML2 BE 24
Product number
1606080
Beskyttelsesmodul 24V 2-polet
BLITZDUCTOR. Patron 24 V
Product details
Technical specifications
Max. continuous voltage AC23.3 V
Max. continuous voltage DC33 V
Lightning impulse current (10/350 µs)3 kA
Nominal discharge surge current (8/20)10 kA
Nominal load current0.75 A
Voltage protection level90 V
Voltage protection level core/core90 V
Voltage protection level core/earth90 V
Voltage protection level core/signal ground90 V
Voltage protection level signal ground/protective ground90 V
Limiting frequency3.4 MHz
Mounting methodOn basic element
Number of conductors (without earthing)2
Earthing viaDIN rail (top hat rail)
Assembly width6 mm
Product codes
SAPDLT464
El number1606080
Product number1606080
GTIN/EAN4013364410138
Manufacturer part number927024
Vendor material number927024
Basic information
Package measurements (L x W x H)9 x 120 x 81 mm
Package volume0.087 l
Package weight0.014 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121634
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
