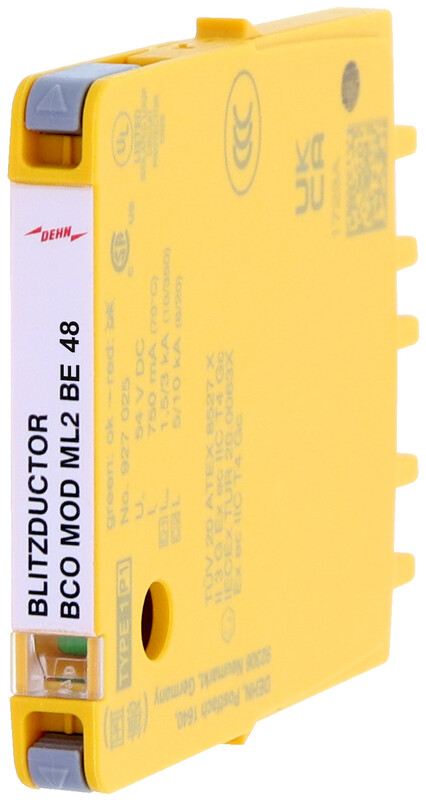

SURGE ARRESTER EQUIPP. DEHNBCO BCO MOD ML2 BE 48
Product number
1606081
Beskyttelsesmodul 48V 2-polet
BLITZDUCTOR. Patron 48 V
Product details
Technical specifications
Max. continuous voltage AC38 V
Max. continuous voltage DC54 V
Lightning impulse current (10/350 µs)3 kA
Nominal discharge surge current (8/20)10 kA
Nominal load current0.75 A
Voltage protection level140 V
Voltage protection level core/core140 V
Voltage protection level core/earth140 V
Voltage protection level core/signal ground140 V
Voltage protection level signal ground/protective ground140 V
Limiting frequency5 MHz
Mounting methodOn basic element
Number of conductors (without earthing)2
Earthing viaDIN rail (top hat rail)
Assembly width6 mm
Product codes
SAPDLT465
El number1606081
Product number1606081
GTIN/EAN4013364410145
Manufacturer part number927025
Vendor material number927025
Basic information
Package measurements (L x W x H)9 x 120 x 81 mm
Package volume0.087 l
Package weight0.014 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121634
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
