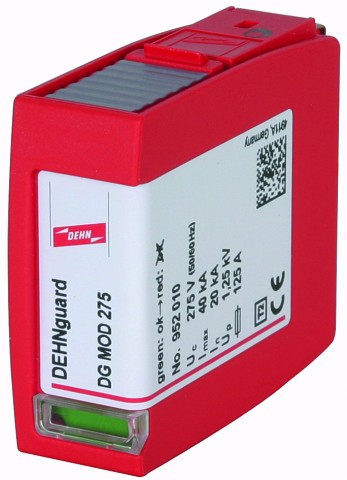

SURGE ARRESTER FOR LV-NETWORK DG MOD 275
Product number
1606967
Beskyttelsesmodul
Beskyttelsesmodul til 952090, 952305, 952405, 942310 og 942315
Product details
Technical specifications
System configuration TNyes
System configuration TN-Cyes
System configuration TN-C-Syes
System configuration TN-Syes
System configuration TTyes
Number of conductors (without earthing)1
Nominal discharge surge current (8/20)20 kA
Max. discharge surge current (8/20)40 kA
Nominal voltage AC230 V
Max. continuous voltage AC275 V
Max. continuous voltage DC350 V
Voltage protection level1.5 kV
Voltage protection level L-N1.5 kV
Voltage protection level N-PE1.5 kV
Max. overcurrent protection device, parallel connection (fuse)125 A
Product codes
SAPDLT415
El number1606967
Product number1606967
GTIN/EAN4013364108356
Manufacturer part number952010
Vendor material number952010
Basic information
Package measurements (L x W x H)61 x 76 x 70 mm
Package volume0.325 l
Package weight0.043 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121634
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
