Beskyttelsesmodul til 951316
Product number
1606096

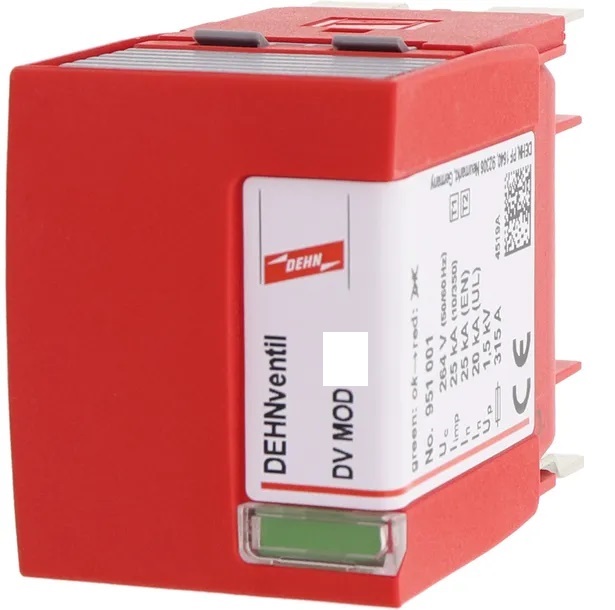

DEHN gnistgap beskyttelsesmodul for DEHNventil M
For part nr 951316, DV MOD SN1852
Product details
Technical specifications
System configuration DCno
System configuration ITyes
System configuration TNno
System configuration TN-Cno
System configuration TN-C-Sno
System configuration TN-Sno
System configuration TTyes
Number of poles3
Lightning impulse current (10/350 µs)16.7 kA
Max. continuous voltage AC350 V
Nominal voltage AC230 V
Voltage protection level2.5 kV
Voltage protection level L-PE2.5 kV
Specific energy (W/R)625 kJ/Ohm
Max. overcurrent protection device, series connection (fuse)315 A
Product codes
SAPDLT604
El number1606096
Product number1606096
GTIN/EAN4013364267251
Manufacturer part number999916
Vendor material number999916
Basic information
Package measurements (L x W x H)61 x 76 x 70 mm
Package volume0.325 l
Package weight0.294 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
