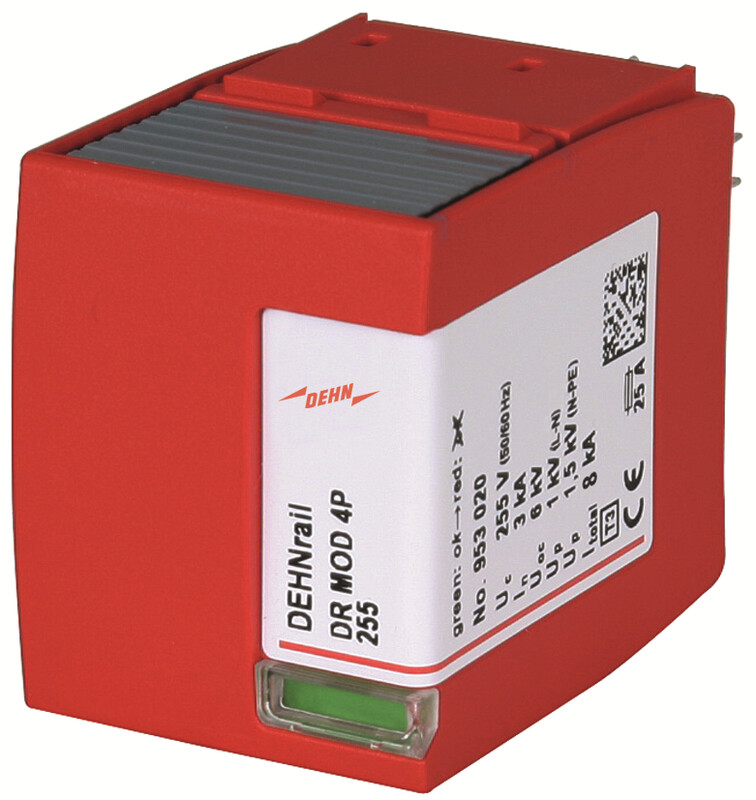

SURGE ARRESTER EQUIPP. ACESS DR MOD 4P 255
Product number
1606055
Beskyttelsesmodul Type 3 3-fas
DEHNrail. Reservepatron for 4-polet finbeskyttelse
Product details
Technical specifications
Nominal voltage AC230 V
Max. continuous voltage AC255 V
Nominal load current25 A
Nominal discharge surge current (8/20) (L-N)3 kA
Total discharge current (8/20) (L+N-PE)3 kA
Total discharge current (8/20) (L1+L2+L3+N-PE)8 kA
Voltage protection level1.5 kV
Voltage protection level L-N1 kV
Voltage protection level L-PE/N-PE1.5 kV
Max. overcurrent protection device, parallel connection (fuse)25 A
Max. overcurrent protection device, series connection (fuse)25 A
Mounting methodOn basic element
Signalling at the deviceOptical
Category type 3yes
Degree of protection (IP)IP20
Product codes
SAPDLT421
El number1606055
Product number1606055
GTIN/EAN4013364117440
Manufacturer part number953020
Vendor material number953020
Basic information
Package measurements (L x W x H)40 x 79 x 61 mm
Package volume0.193 l
Package weight0.059 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121634
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
