Gnistgap 2 koblinger RD10
Product number
1606094
Gnistgap 2 koblinger RD10

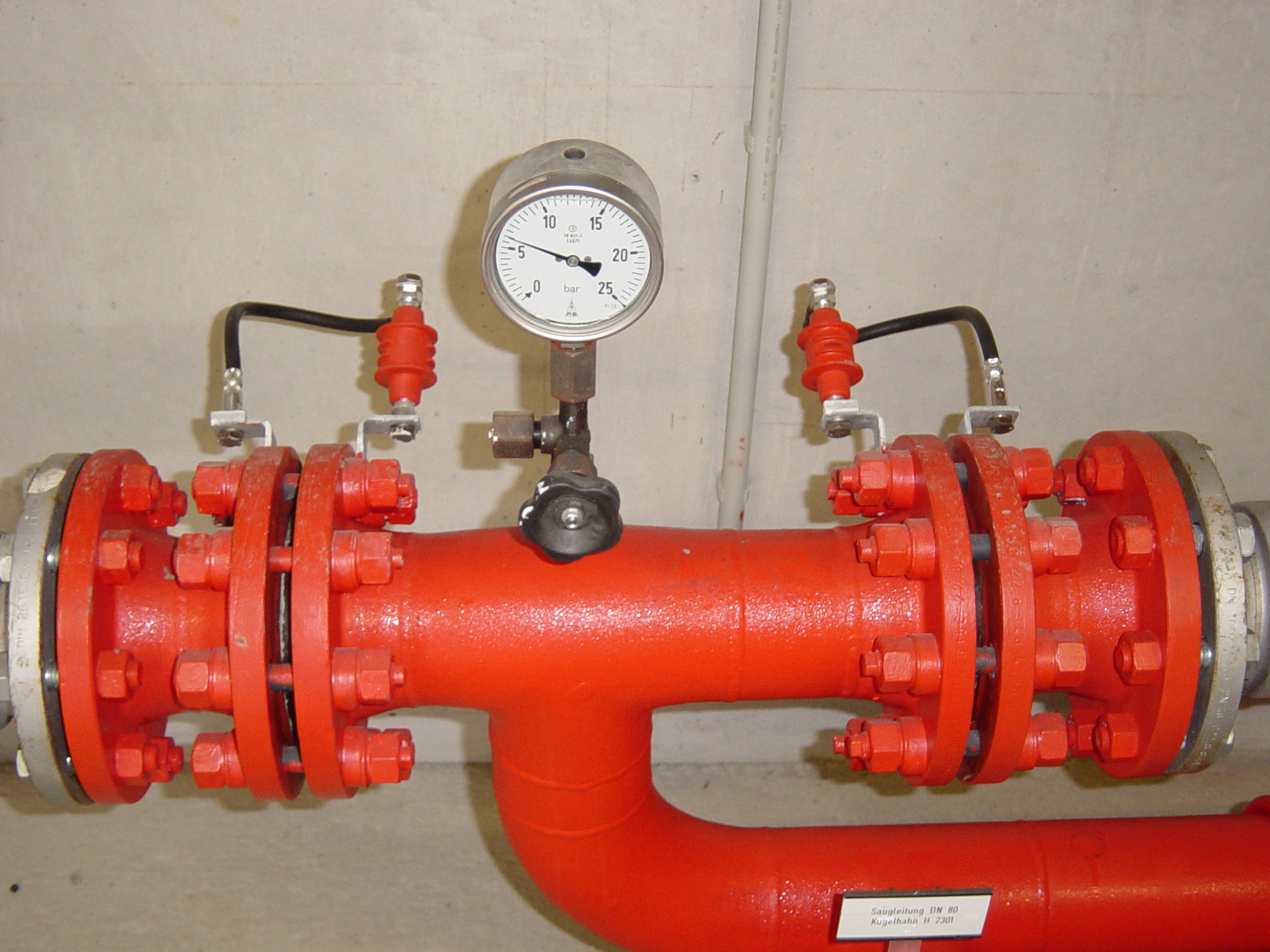

Gnistgap for indirekte tilkobling av metalldeler
Product details
Technical specifications
Nominal discharge surge current (8/20)100 kA
Lightning impulse current (10/350 µs)100 kA
Rated impulse sparkover voltage2.5 kV
Rated power-frequency withstand voltage4000 V
ConnectionRound 10 mm
Suitable for connectionRound conductor Rd 8-10 / flat conductor Fl 20-40
Material of connectionStainless steel 304 (V2A)
Degree of protection (IP)IP66
Product codes
SAPDLT541
El number1606094
Product number1606094
GTIN/EAN4013364074262
Manufacturer part number923023
Vendor material number923023
Basic information
Package measurements (L x W x H)46 x 160 x 46 mm
Package volume0.339 l
Package weight0.185 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
