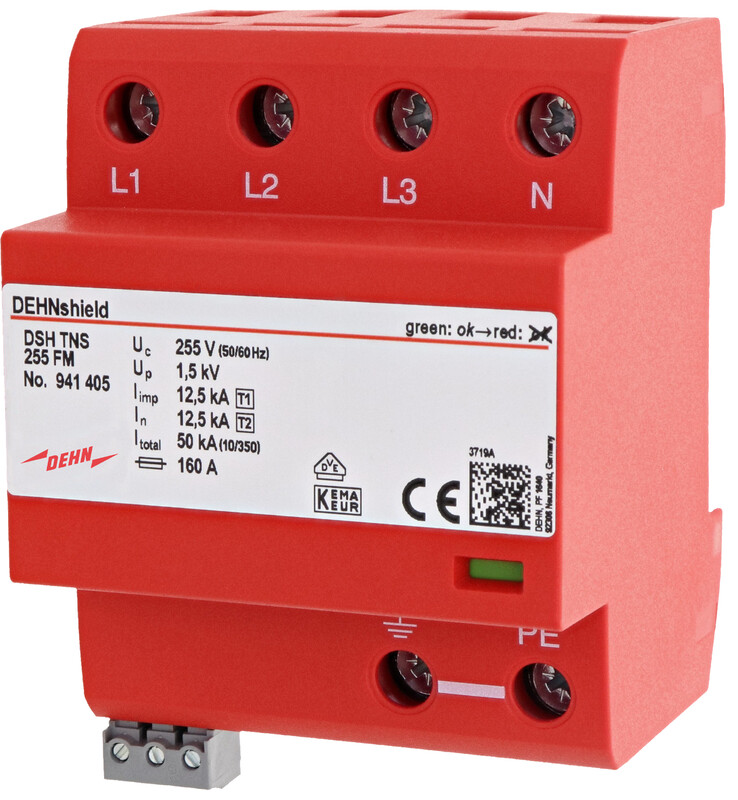

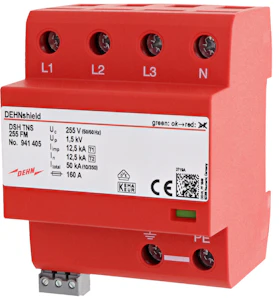

SURGE ARRESTER FOR LV-NETWORK DSH TNS 255 FM
Product number
1606040
Overspenningsvern Type 1+2+3 for TNS FM
DEHNshield. Grov, mellom og fin beskyttelse 1-fase for TN-S. Med meldekontakt
Product details
Technical specifications
System configuration DCno
System configuration ITno
System configuration TNyes
System configuration TN-Cno
System configuration TN-C-Syes
System configuration TN-Syes
System configuration TTyes
System configuration otherno
Number of poles4
Lightning impulse current (10/350 µs)12.5 kA
Max. continuous voltage AC255 V
Nominal voltage AC230 V
Voltage protection level1.5 kV
Voltage protection level L-N1.5 kV
Voltage protection level L-PE1.5 kV
Product codes
SAPDIK453
El number1606040
Product number1606040
GTIN/EAN4013364275331
Manufacturer part number941405
Vendor material number941405
Basic information
Package measurements (L x W x H)115 x 90 x 90 mm
Package volume0.932 l
Package weight0.488 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121634
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
