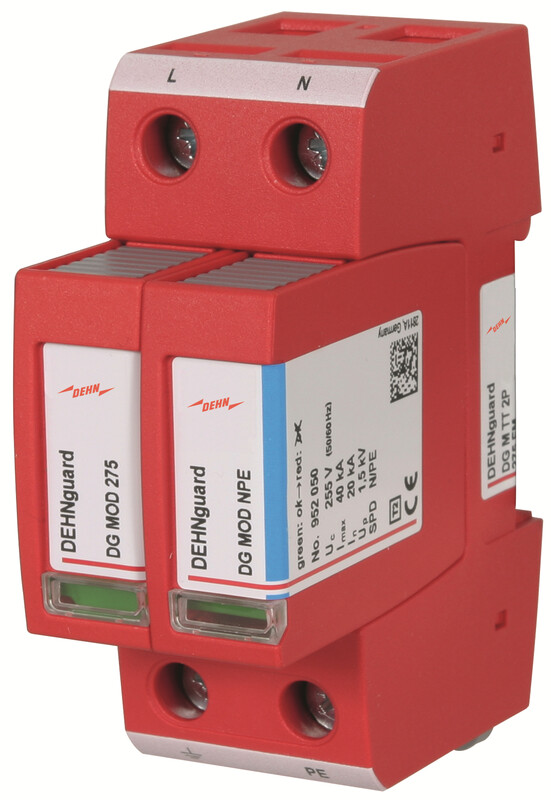

SURGE ARRESTER FOR LV-NETWORK DG M TT 2P 275 FM
Product number
1606045
Overspenningsvern Type 2 1-fase TT/TN
DEHNGuard. Mellomvern for TT/TN 275 M 1+1 beskyttelse. Med meldekontakt
Product details
Technical specifications
System configuration TNyes
System configuration TN-Cyes
System configuration TN-C-Syes
System configuration TN-Syes
System configuration TTyes
Number of conductors (without earthing)2
Nominal discharge surge current (8/20)20 kA
Max. discharge surge current (8/20)40 kA
Nominal voltage AC230 V
Max. continuous voltage AC275 V
Voltage protection level1.5 kV
Voltage protection level L-N1.5 kV
Voltage protection level N-PE1.5 kV
Max. overcurrent protection device, parallel connection (fuse)125 A
Short-circuit breaking capacity (Isccr)50 kA
Product codes
SAPDLT535
El number1606045
Product number1606045
GTIN/EAN4013364108424
Manufacturer part number952115
Vendor material number952115
Basic information
Package measurements (L x W x H)37 x 100 x 74 mm
Package volume0.274 l
Package weight0.228 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121634
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
