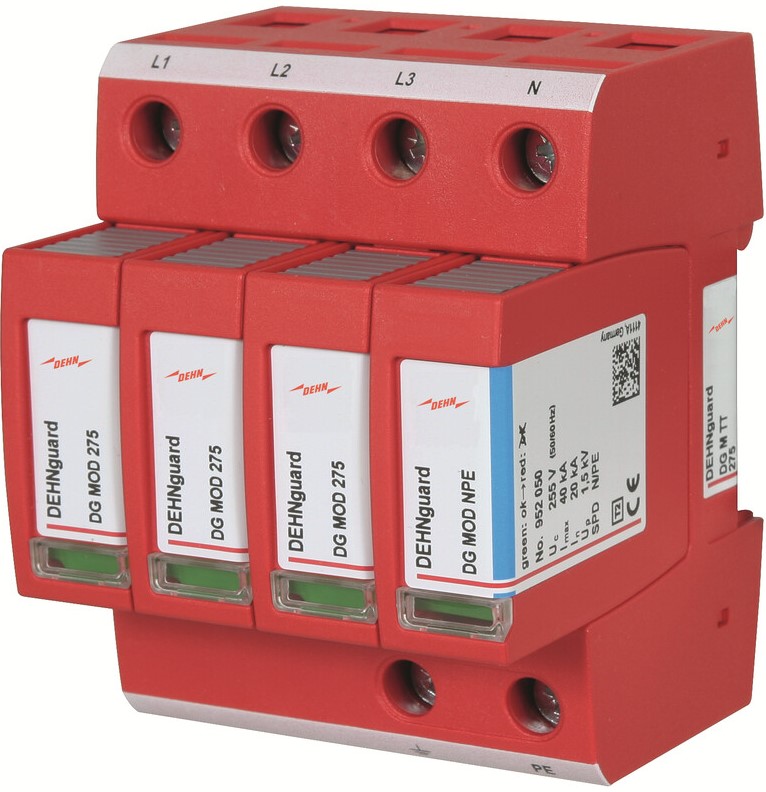

SURGE ARRESTER FOR LV-NETWORK DG M TT 275
Product number
1606047
Overspenningsvern Type 2+3 for TT/TN-S
DEHNguard M 40kA 275V 3P+1 for TT/TN
Product details
Technical specifications
System configuration TNyes
System configuration TN-C-Syes
System configuration TN-Syes
System configuration TTyes
Number of conductors (without earthing)4
Nominal discharge surge current (8/20)20 kA
Max. discharge surge current (8/20)40 kA
Nominal voltage AC230 V
Max. continuous voltage AC275 V
Voltage protection level1.5 kV
Voltage protection level L-N1.5 kV
Voltage protection level N-PE1.5 kV
Max. overcurrent protection device, parallel connection (fuse)125 A
Max. overcurrent protection device, series connection (fuse)125 A
Short-circuit breaking capacity (Isccr)50 kA
Product codes
SAPDLT537
El number1606047
Product number1606047
GTIN/EAN4013364108479
Manufacturer part number952310
Vendor material number952310
Basic information
Package measurements (L x W x H)73 x 99 x 74 mm
Package volume0.535 l
Package weight0.405 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121634
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
