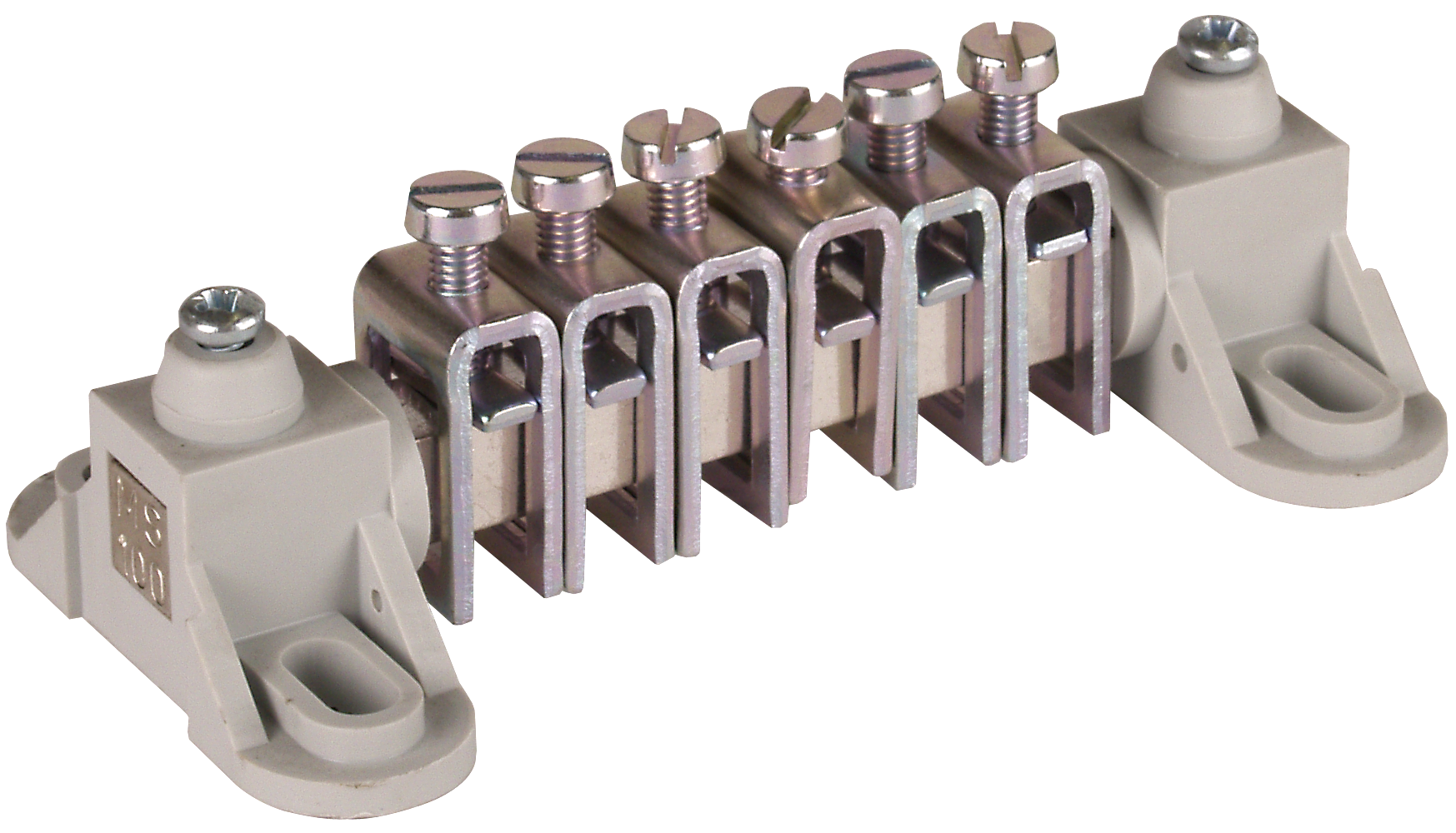

Potensialutjevningsskinne mini
Product number
1211493
Potensialutjevningsskinne mini
Tilkoblinger 6x2,5-25mm2
Product details
Technical specifications
Construction typeSurface mounting fix
ModelWithout covering cap
Insulatoryes
Height58 mm
Width31 mm
Length113 mm
Number of connections round conductor total6
Number of connections conductor to 6 mm² fixed6
Number of connections conductor to 16 mm² fixed6
Number of connections conductor to 25 mm² fixed6
Material of contact railCopper
Surface of the contact railNickel-plated
Material of clampBrass
Surface of the clampNickel-plated
Product codes
SAPDLT396
El number1211493
Product number1211493
GTIN/EAN4013364027831
Manufacturer part number563105
Vendor material number563105
Basic information
Package measurements (L x W x H)40 x 113 x 58 mm
Package volume0.262 l
Package weight0.21 kg
Base uniteach
Package units1 / 10
Usage quantity–
UNSPSC32000000
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
