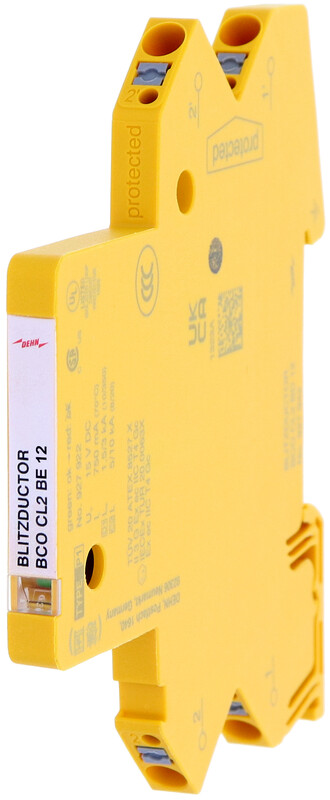

SURGE ARRESTER FOR TELE DEHN BCO CL2 BE 12
Product number
1606083
Signalbeskyttelse 12V 2-polet kompakt
BLITZDUCTOR: 2-polet kompakt med optisk indikasjon
Product details
Technical specifications
Max. continuous voltage AC10.6 V
Max. continuous voltage DC15 V
Lightning impulse current (10/350 µs)3 kA
Nominal discharge surge current (8/20)10 kA
Nominal load current0.75 A
Voltage protection level48 V
Voltage protection level core/core48 V
Voltage protection level core/earth48 V
Voltage protection level core/signal ground48 V
Voltage protection level signal ground/protective ground48 V
Limiting frequency1.4 MHz
Mounting methodDIN rail (top hat rail) 35 mm
Number of conductors (without earthing)2
Earthing viaDIN rail (top hat rail)
Assembly width6 mm
Product codes
SAPDLT467
El number1606083
Product number1606083
GTIN/EAN4013364411951
Manufacturer part number927922
Vendor material number927922
Basic information
Package measurements (L x W x H)9 x 120 x 81 mm
Package volume0.087 l
Package weight0.033 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121634
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
