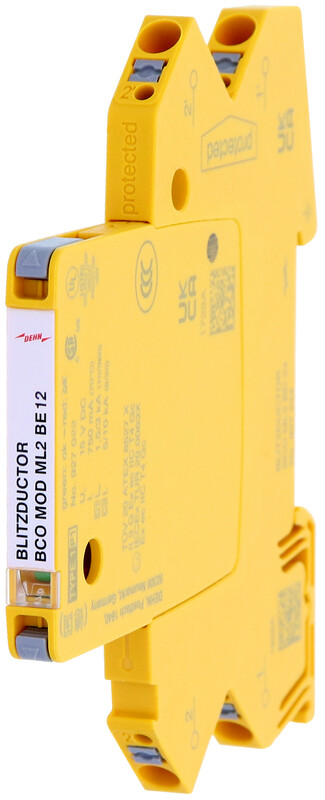

SURGE ARRESTER FOR TELE DEHN BCO ML2 BE 12
Product number
1606075
Signalbeskyttelse 12V pluggbar
BLITZDUCTOR: 2-polet med utskiftbare patroner Optisk indikasjon
Product details
Technical specifications
Max. continuous voltage AC10.6 V
Max. continuous voltage DC15 V
Lightning impulse current (10/350 µs)3 kA
Nominal discharge surge current (8/20)10 kA
Nominal load current0.75 A
Voltage protection level48 V
Voltage protection level core/core48 V
Voltage protection level core/earth48 V
Voltage protection level core/signal ground48 V
Voltage protection level signal ground/protective ground48 V
Mounting methodDIN rail (top hat rail) 35 mm
Number of conductors (without earthing)2
Earthing viaDIN rail (top hat rail)
Assembly width6 mm
Degree of protection (IP)IP20
Product codes
SAPDLT461
El number1606075
Product number1606075
GTIN/EAN4013364405592
Manufacturer part number927222
Vendor material number927222
Basic information
Package measurements (L x W x H)15 x 120 x 84 mm
Package volume0.151 l
Package weight0.034 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121634
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
