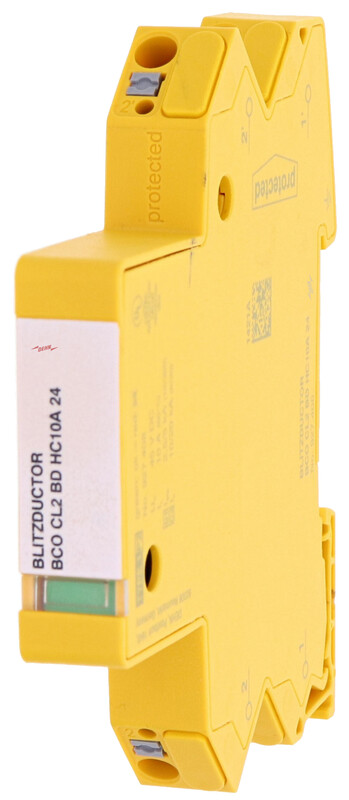

SURGE ARRESTER FOR TELE DEHN BCO CL2 BD HC10A 24
Product number
1606087
Signalbeskyttelse 24V 10A kompakt
BLITZDUCTOR: 2-polet 12mm kompakt med optisk indikasjon
Product details
Technical specifications
Max. continuous voltage AC31.8 V
Max. continuous voltage DC45 V
Lightning impulse current (10/350 µs)5 kA
Nominal discharge surge current (8/20)20 kA
Nominal load current10 A
Voltage protection level800 V
Voltage protection level core/core100 V
Voltage protection level core/earth800 V
Voltage protection level core/signal ground800 V
Voltage protection level signal ground/protective ground800 V
Limiting frequency2 MHz
Mounting methodDIN rail (top hat rail) 35 mm
Number of conductors (without earthing)2
Earthing viaDIN rail (top hat rail)
Assembly width12 mm
Product codes
SAPDLT470
El number1606087
Product number1606087
GTIN/EAN4013364463653
Manufacturer part number927408
Vendor material number927408
Basic information
Package measurements (L x W x H)19 x 98 x 90 mm
Package volume0.168 l
Package weight0.052 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121634
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
