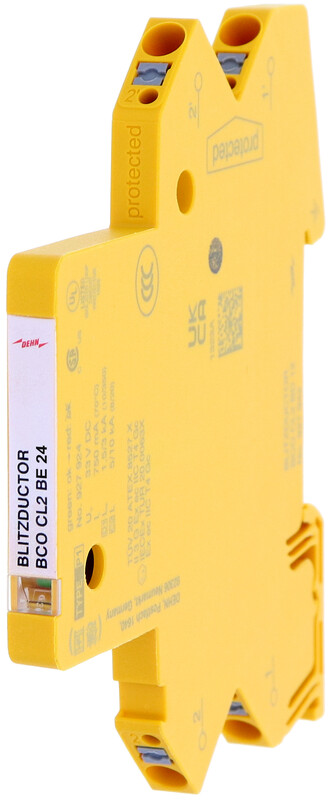

SURGE ARRESTER FOR TELE DEHN BCO CL2 BE 24
Product number
1606084
Signalbeskyttelse 24V 2-polet kompakt
BLITZDUCTOR: 2-polet kompakt med optisk indikasjon
Product details
Technical specifications
Max. continuous voltage AC23.3 V
Max. continuous voltage DC33 V
Lightning impulse current (10/350 µs)3 kA
Nominal discharge surge current (8/20)10 kA
Nominal load current0.75 A
Voltage protection level90 V
Voltage protection level core/core90 V
Voltage protection level core/earth90 V
Voltage protection level core/signal ground90 V
Voltage protection level signal ground/protective ground90 V
Limiting frequency3.4 MHz
Mounting methodDIN rail (top hat rail) 35 mm
Number of conductors (without earthing)2
Earthing viaDIN rail (top hat rail)
Assembly width6 mm
Product codes
SAPDLT468
El number1606084
Product number1606084
GTIN/EAN4013364411968
Manufacturer part number927924
Vendor material number927924
Basic information
Package measurements (L x W x H)9 x 120 x 81 mm
Package volume0.087 l
Package weight0.033 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121634
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
