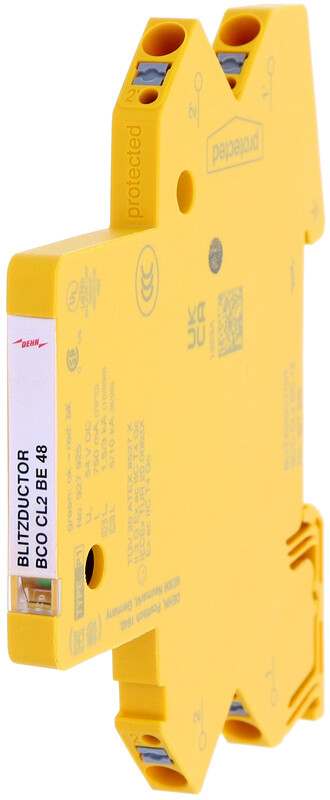

SURGE ARRESTER FOR TELE DEHN BCO CL2 BE 48
Product number
1606085
Signalbeskyttelse 48V 2-polet kompakt
BLITZDUCTOR: 2-polet kompakt med optisk indikasjon
Product details
Technical specifications
Max. continuous voltage AC38.1 V
Max. continuous voltage DC54 V
Lightning impulse current (10/350 µs)3 kA
Nominal discharge surge current (8/20)10 kA
Nominal load current0.75 A
Voltage protection level140 V
Voltage protection level core/core140 V
Voltage protection level core/earth140 V
Voltage protection level core/signal ground140 V
Voltage protection level signal ground/protective ground140 V
Limiting frequency5 MHz
Mounting methodDIN rail (top hat rail) 35 mm
Number of conductors (without earthing)2
Earthing viaDIN rail (top hat rail)
Assembly width6 mm
Product codes
SAPDLT469
El number1606085
Product number1606085
GTIN/EAN4013364411975
Manufacturer part number927925
Vendor material number927925
Basic information
Package measurements (L x W x H)9 x 120 x 81 mm
Package volume0.087 l
Package weight0.033 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121634
BrandDEHN
Country of OriginDE Germany
Customs tariff code85363000
