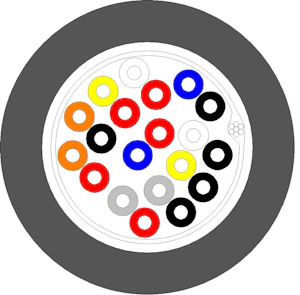

A10-0,6 MXLE CU-10/0,6-BURIED/DUCT-CS
Product number
1082671
CU-10/0,6-BURIED/DUCT-CS
Utendørs jord-og kanalkabel, skjermet, fettfylt parkabel. Telenor fargekode
Product details
Technical specifications
Conductor materialCopper
Conductor surfaceBare
Diameter conductor0.6 mm
Nominal cross section conductor0.28 mm²
Conductor categoryClass 1 = solid
Number of cores20
Number of stranding elements10
Stranding elementPairs
Material core insulationPolyolefin
Specification core insulationPolyethylene (PE)
Core identificationColour
Screen over stranding elementNone
StrandingBundle
Screen over strandingFoil
Longitudinal water blocking cableyes
Product codes
SAPGDJ032
El number1082671
Product number1082671
GTIN/EAN8717511354073
Manufacturer part number60013506
Vendor material number1082671
Basic information
Package measurements (L x W x H)0 x 0 x 12 mm
Package volume0 l
Package weight0.144 kg
Base unitm
Package units4000
Usage quantity1
UNSPSC26121616
BrandDRAKA
Country of OriginDE Germany
Customs tariff code85444911
