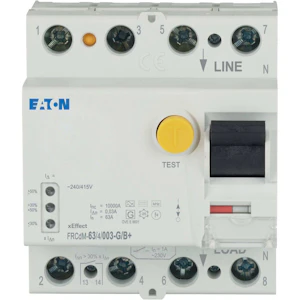

Digital jordfeilbryter 63A 30mA G/B+
Product number
1664180
FRCDM-63/4/003-G/B+
25 -< 80 Ampér
Tilpasset samme samleskinne som
elementautomat - FAZ
Rammeklemme for 1,5-35mm²
Tiltrekkingsmoment 2,4Nm
Utløsegrense mA: 30, 300mA
Støtstrømsikker: 3kA [8/20]
Un: 240-415 V - 50 Hz
4-polet fekvenssikker opp til 1KHz
Tilpasset samme samleskinne som
elementautomat - FAZ
Rammeklemme for 1,5-35mm²
Tiltrekkingsmoment 2,4Nm
Utløsegrense mA: 30, 300mA
Støtstrømsikker: 3kA [8/20]
Un: 240-415 V - 50 Hz
4-polet fekvenssikker opp til 1KHz
Product details
Technical specifications
Number of poles4
Rated voltage415 V
Rated current63 A
Rated fault current0.03 A
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Mounting methodDIN rail
Leakage current typeB+
Selective protectionfalse
Short-time delayed trippingtrue
Short-circuit breaking capacity (Icw)10 kA
Surge current capacity3 kA
Voltage typeAC
With interlocking devicetrue
Frequency50 Hz
Product codes
SAPGCR321
PLC1664180
STK1664180
GTIN/EAN4015081644568
Manufacturer part number167882
Vendor material number1664180
Basic information
Package measurements (L x W x H)76 x 70 x 80 mm
Package volume0.426 l
Package weight0.419 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121614
BrandEATON
