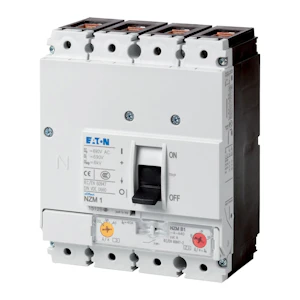

EFFEKTBRYTER 4P 25A KLEMME NZMN1-4-A25
Product number
4358988
NZMN1-4-A25
Komplett effektbryter, 15 ...160 A
Maks: 690 V 50/60 Hz. EN 60947
I2 = høyeste prøvestrøm
Ii = elektromagnetisk utløserstrøm
A-type = termisk/elektromagnetisk vern
M-type=termisk/elektromagn. motorvern
Rammeklemme Cu moment 9Nm
Tunnelklemme Al/Cu moment 15Nm
Bolttilkobling moment 9Nm
Ik max: Ics = Icu = 50 kA (400V)
I2: 1,3 x In: 100% vern i N
Ii: Se beskrivelse
Rammeklemme for Cu
4 - polet: NZMN1-...
Product details
Technical specifications
Rated permanent current Iu25 A
Rated voltage690-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz50 kA
Overload release current setting20-25 A
Adjustment range short-term delayed short-circuit release0 - 0 A
Adjustment range undelayed short-circuit release350-350 A
Power loss8.8 W
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionno
Type of electrical connection of main circuitFrame clamp
Suitable for DIN rail (top hat rail) mountingno
DIN rail (top hat rail) mounting optionalyes
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Product codes
SAPGAM440
El number4358988
Product number4358988
GTIN/EAN4015082812478
Manufacturer part number281247
Vendor material number4358988
Basic information
Package measurements (L x W x H)145 x 88 x 120 mm
Package volume1.531 l
Package weight1.328 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121600
BrandEATON
Country of OriginRO Romania
Customs tariff code85365000
