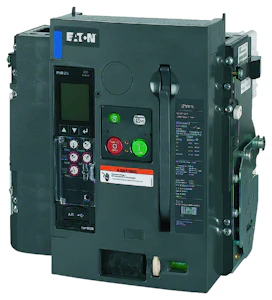

EFFEKTBRYTER UTTREKKBAR IZMX16N4-P06W-1
Product number
4398076
IZMX16N4-P06W-1
IZMX16N, 4-pole, 630 A, uttrekkbar
Product details
Technical specifications
Rated permanent current Iu630 A
Rated voltage690 - 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz50 kA
Overload release current setting252 - 630 A
Adjustment range short-term delayed short-circuit release378 - 6300 A
Adjustment range undelayed short-circuit release1260 - 9450 A
Power loss50 W
Device constructionBuilt-in device slide-in technique (withdrawable)
Integrated earth fault protectionno
Type of electrical connection of main circuitRail connection
Suitable for DIN rail (top hat rail) mountingno
DIN rail (top hat rail) mounting optionalno
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact2
Product codes
SAPCWA201
El number4398076
Product number4398076
GTIN/EAN4015081791989
Manufacturer part number183462
Vendor material number4398076
Basic information
Package measurements (L x W x H)584 x 521 x 597 mm
Package volume181.646 l
Package weight32.49 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121600
BrandEATON
Country of OriginCN China
Customs tariff code85362000
