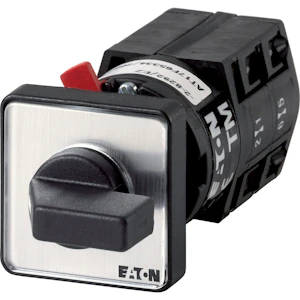

Kambryter, kodet TM-2-8550/EZ
Product number
1456173
TM-2-8550/EZ
Kambryter, kodet, Produkt rekkevidde Vendebryteres, Standarder IEC/EN 60947, VDE 0660, CSA, UL, Vendebryter i henhold til IEC/EN 60947-5-1, Hjelpekontakt i henhold til IEC/EN 60947-5-1, gruppereferanse: TM, med sort grep og frontplate, Kontakter: 4, Beskyttelsesgrad Front IP65, Design: sentermontasje, bryterfunksjon: BCD Code 0-9, Betjeningsvinkel: 30 °, Betjeningstype: vedlikeholdt, Med 0 (AV) posisjon, 2 kontakter, Strøm: Iu= 10 A, front plate: 0-9
Product details
Technical specifications
Type of switchCoding switch
Number of poles1
Max. rated operation voltage Ue AC500 V
Rated permanent current Iu10 A
Number of switch positions10
With zero (off) positionyes
With retraction in 0-positionno
Device constructionBuilt-in device
Width in number of modular spacings0
Suitable for floor mountingno
Suitable for front mountingyes
Suitable for distribution board installationno
Suitable for intermediate mountingno
Complete device in housingno
Type of control elementWing knob
Product codes
SAPGAD540
El number1456173
Product number1456173
GTIN/EAN4015080006992
Manufacturer part number000699
Vendor material number1456173
Basic information
Package measurements (L x W x H)86 x 30 x 30 mm
Package volume0.077 l
Package weight0.06 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121503
BrandEATON
Country of OriginAT Austria
Customs tariff code85365000
