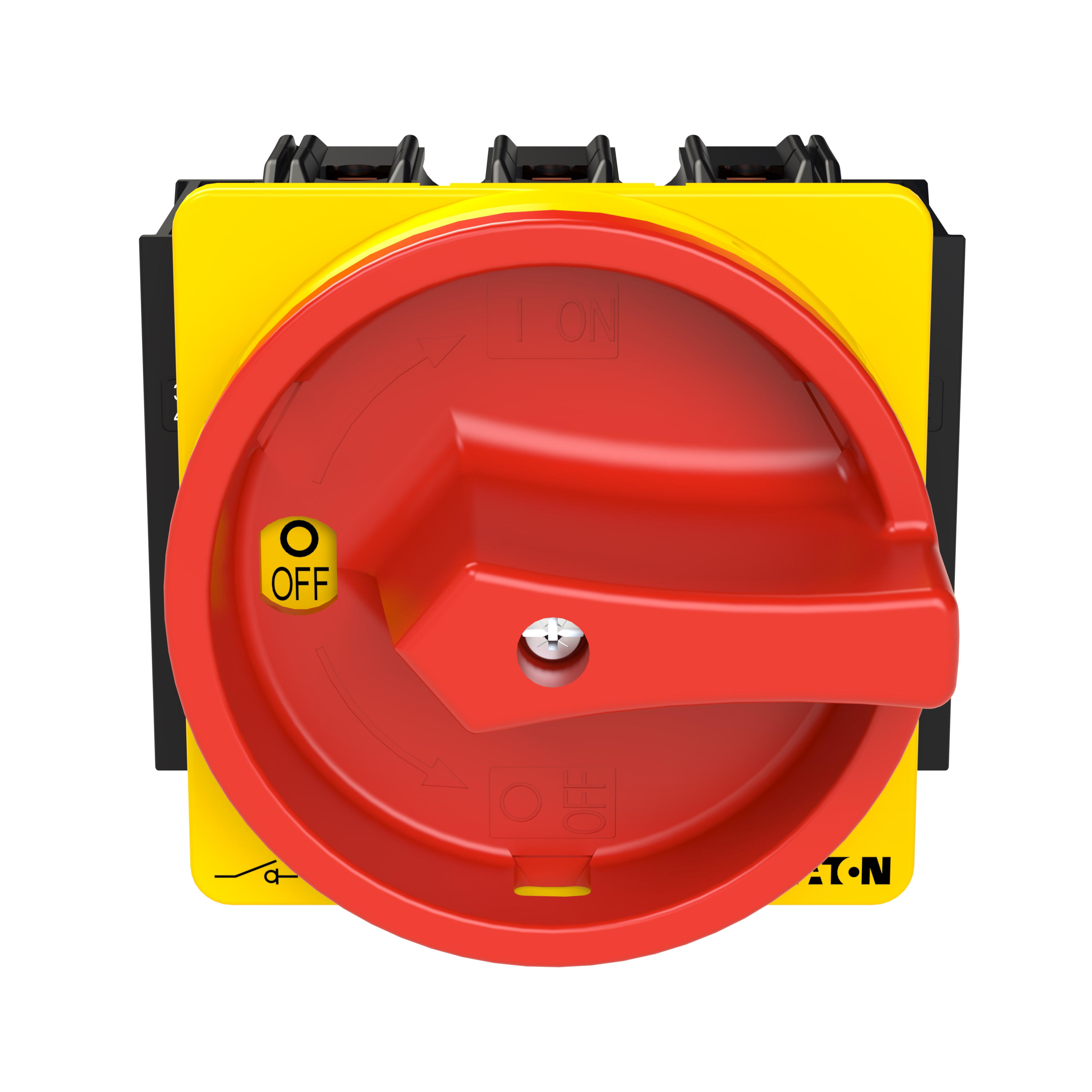

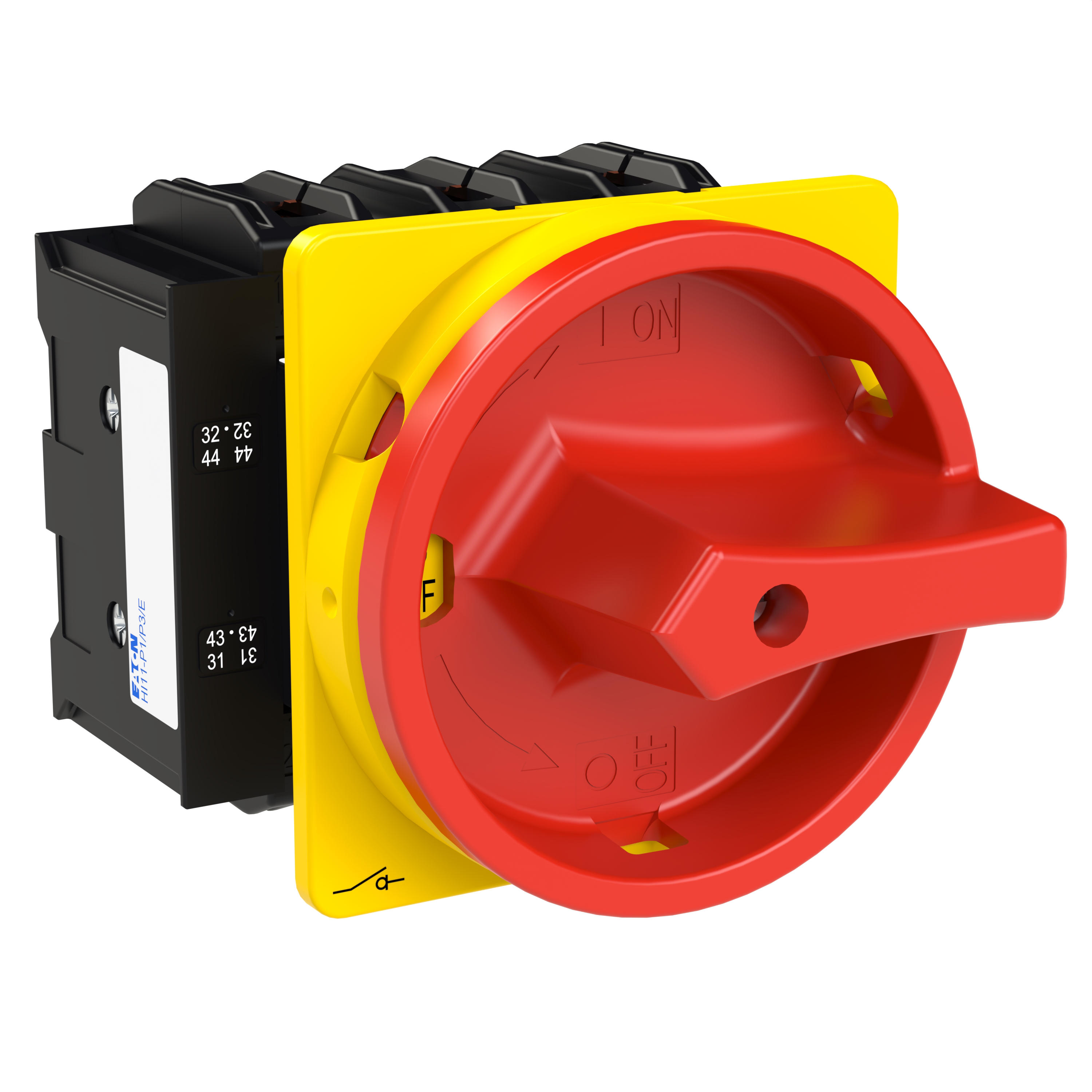

Kambryter P3 80A 3p typ EA/SVB P3-80/EA/SVB/2HI11
Product number
1414027
P3 Hovedbryter, 80 A,innbygging montasje,3 pole, Form EA/SVB, Red, Door coupling rotary drive, 2HI11
Hovedbryter, Produkt område: Hovedbryter, Vedlikeholdsbryter, Produkt gruppe referanse:: P3, Stopp funksjon: Nød stopp funksjon, Med rød håndtak og gul låsering, 3 pol, Beskyttelsesgrad: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, NEMA12
Product details
Technical specifications
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationyes
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage690 - 690 V
Rated permanent current Iu80 A
Rated permanent current at AC-23, 400 V80 A
Rated permanent current at AC-21, 400 V80 A
Rated operation power at AC-3, 400 V30 kW
Rated short-time withstand current lcw2 kA
Rated operation power at AC-23, 400 V30 kW
Switching power at 400 V55 kW
Product codes
SAPDHU494
El number1414027
Product number1414027
GTIN/EAN4015082962845
Manufacturer part numberEP-400925
Vendor material number1414027
Basic information
Package measurements (L x W x H)130 x 105 x 90 mm
Package volume1.229 l
Package weight0.555 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandEATON
Country of OriginGB United Kingdom
Customs tariff code85365000
