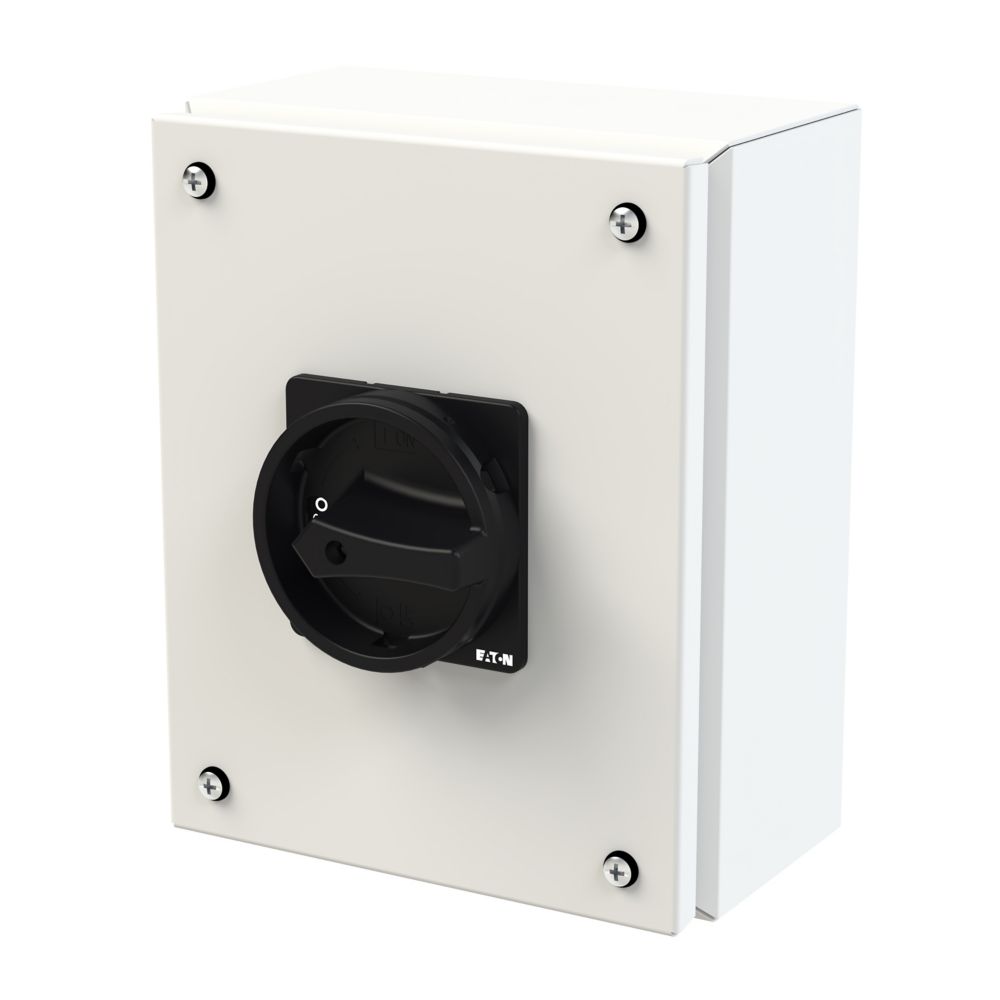

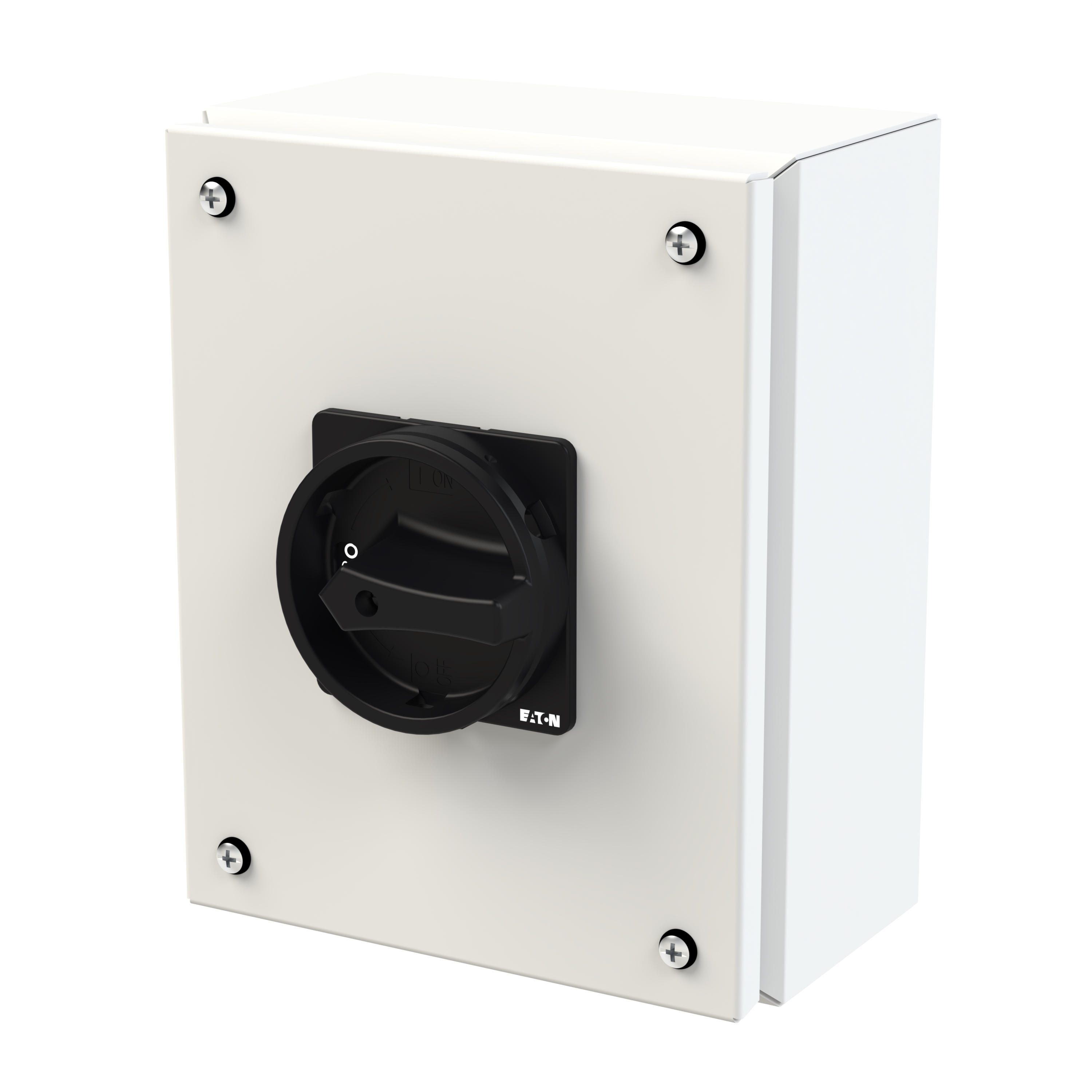

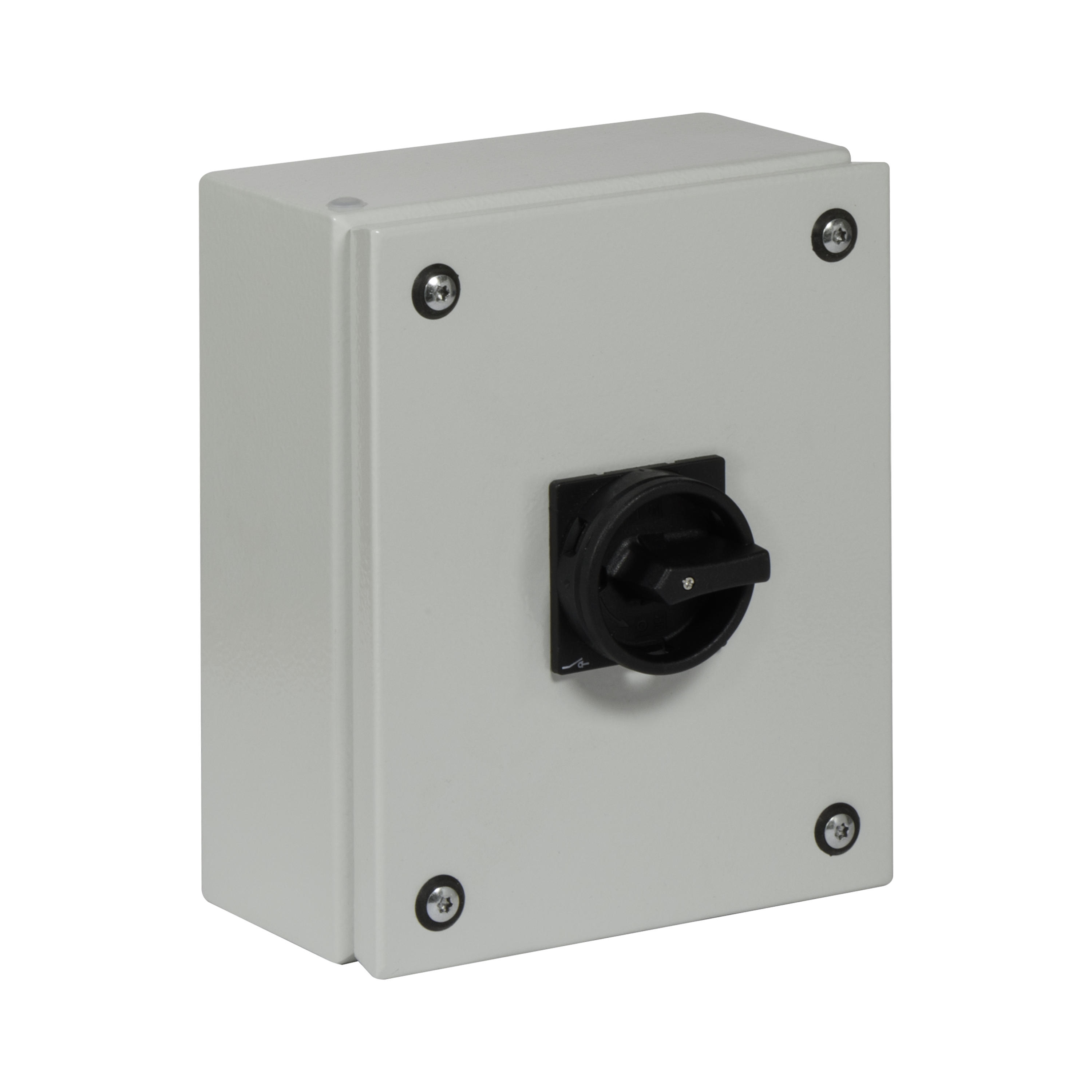

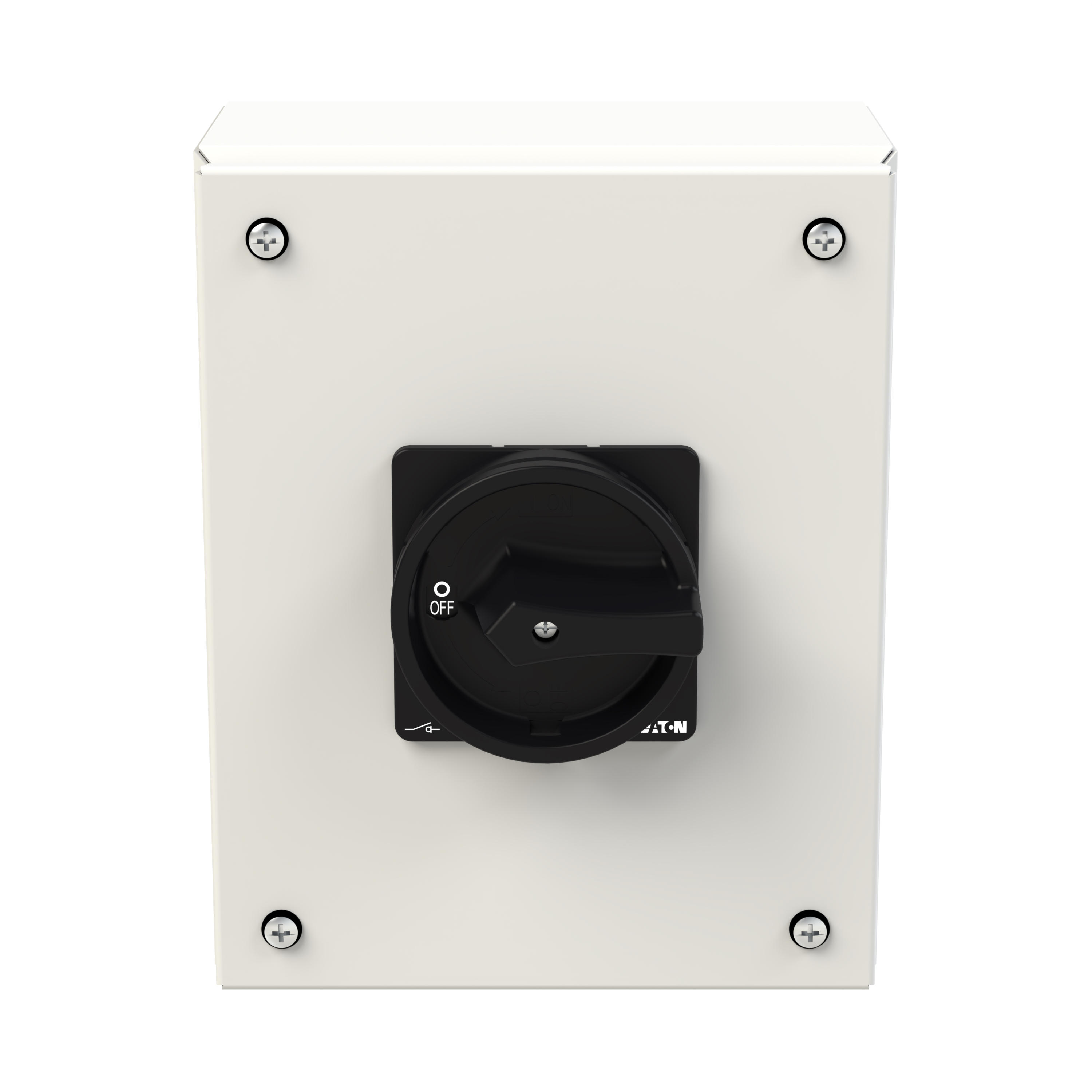

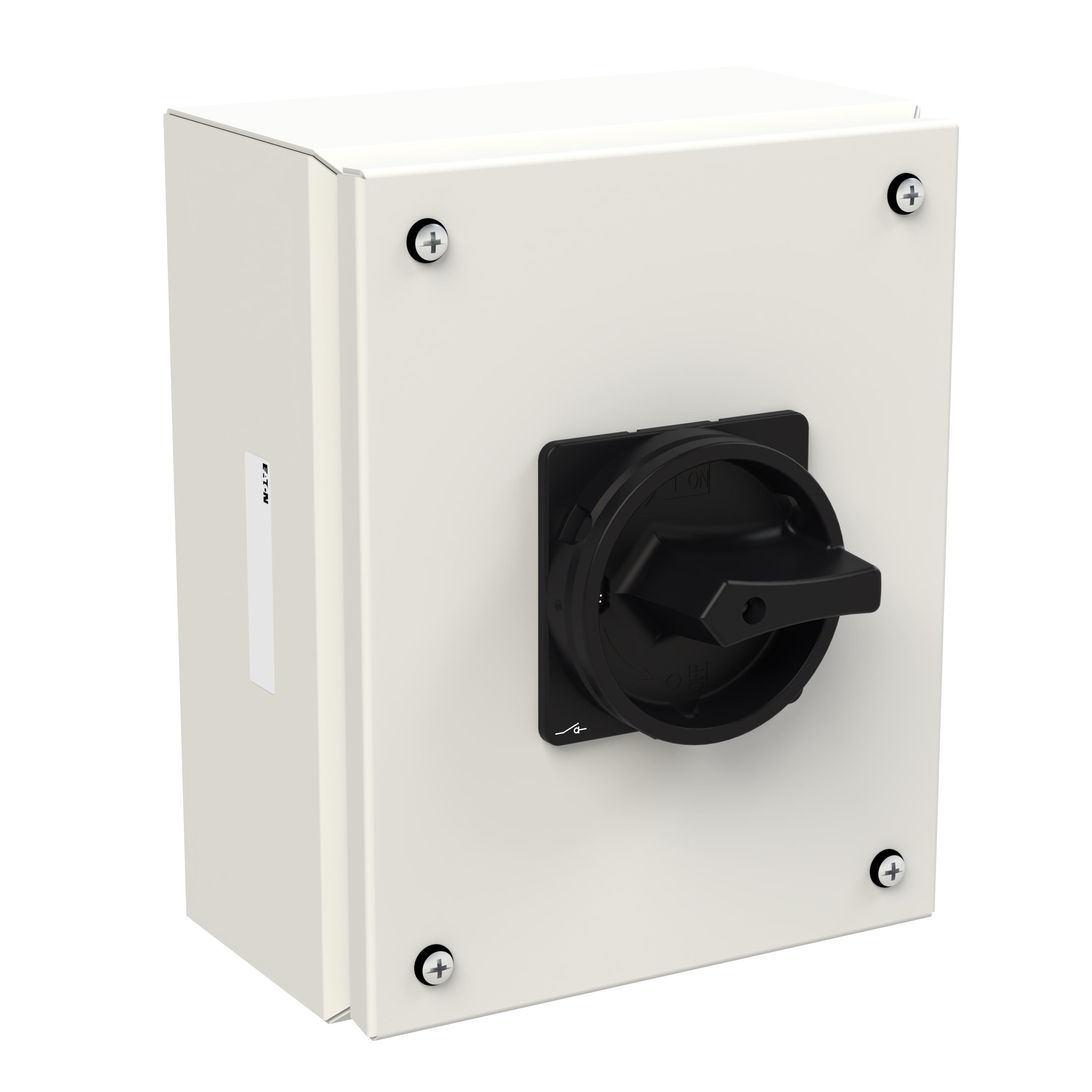

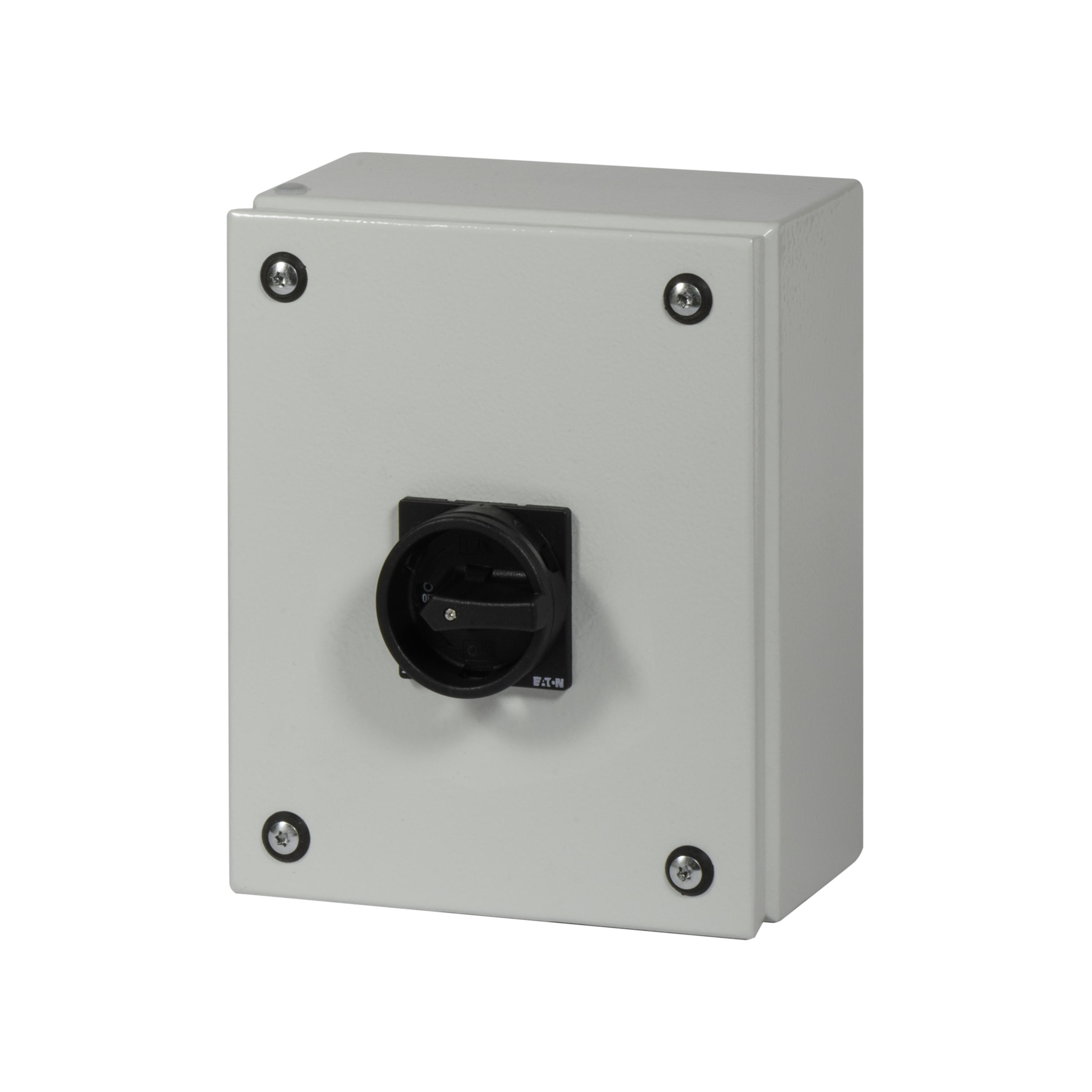

Kambryter P3 80A 3p type SE P3-80/SE3/SVB-SW
Product number
1414062
P3 Hovedbryter, 80 A,På montasje, 3 pole, Form SE, Black, Door coupling rotary drive
Hovedbryter, Produkt gruppe referanse:: P3, funksjons: Interlockable, Stopp funksjon,utstyrt med: Black rotary handle and locking ring, 3-pol, låsbar i 0-stilling (Off), Beskyttelsesgrad: IP65, På-montasje
Product details
Technical specifications
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage690 - 690 V
Rated permanent current Iu80 A
Rated permanent current at AC-23, 400 V80 A
Rated permanent current at AC-21, 400 V80 A
Rated operation power at AC-3, 400 V30 kW
Rated short-time withstand current lcw2 kA
Rated operation power at AC-23, 400 V30 kW
Switching power at 400 V55 kW
Product codes
SAPDHU529
El number1414062
Product number1414062
GTIN/EAN4015082963200
Manufacturer part numberEP-400960
Vendor material number1414062
Basic information
Package measurements (L x W x H)260 x 210 x 165 mm
Package volume9.009 l
Package weight2.709 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandEATON
Country of OriginGB United Kingdom
Customs tariff code85365000
