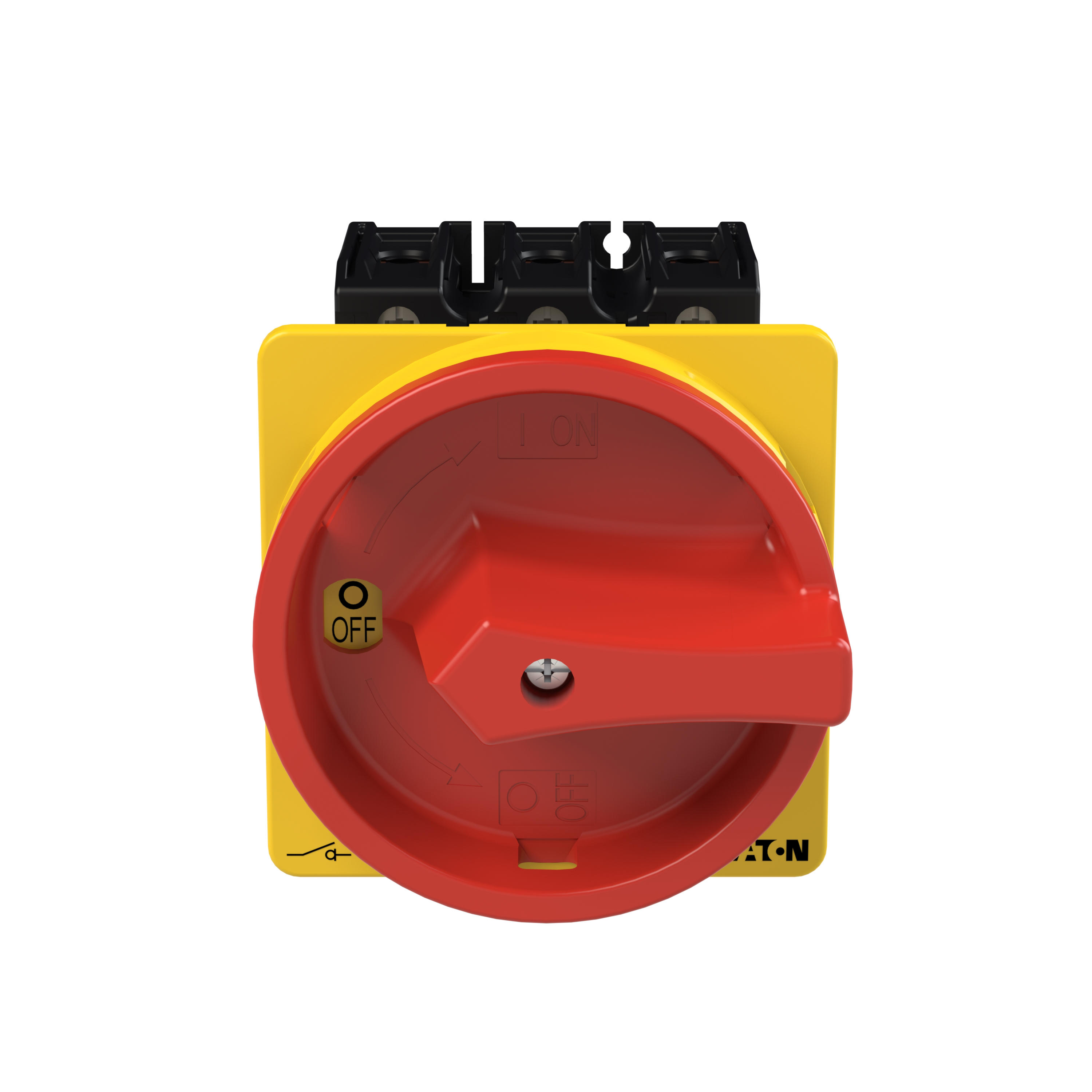

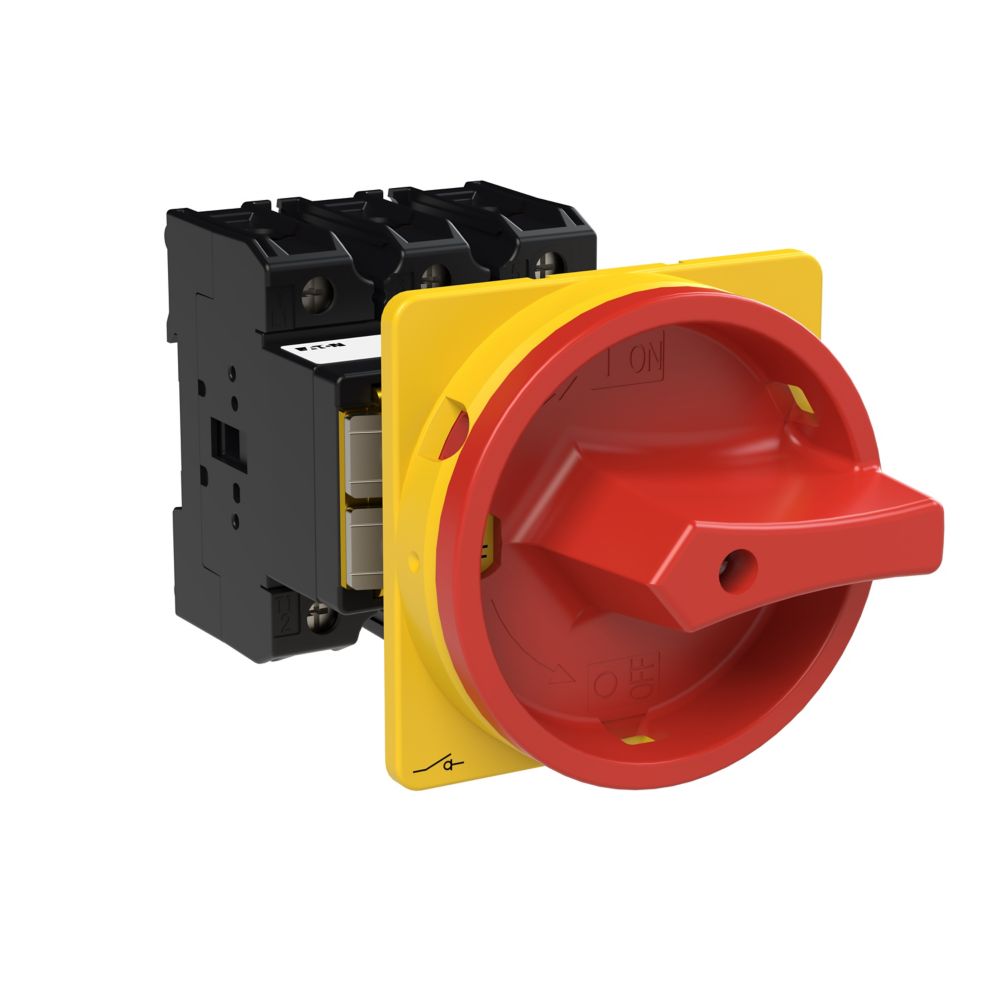

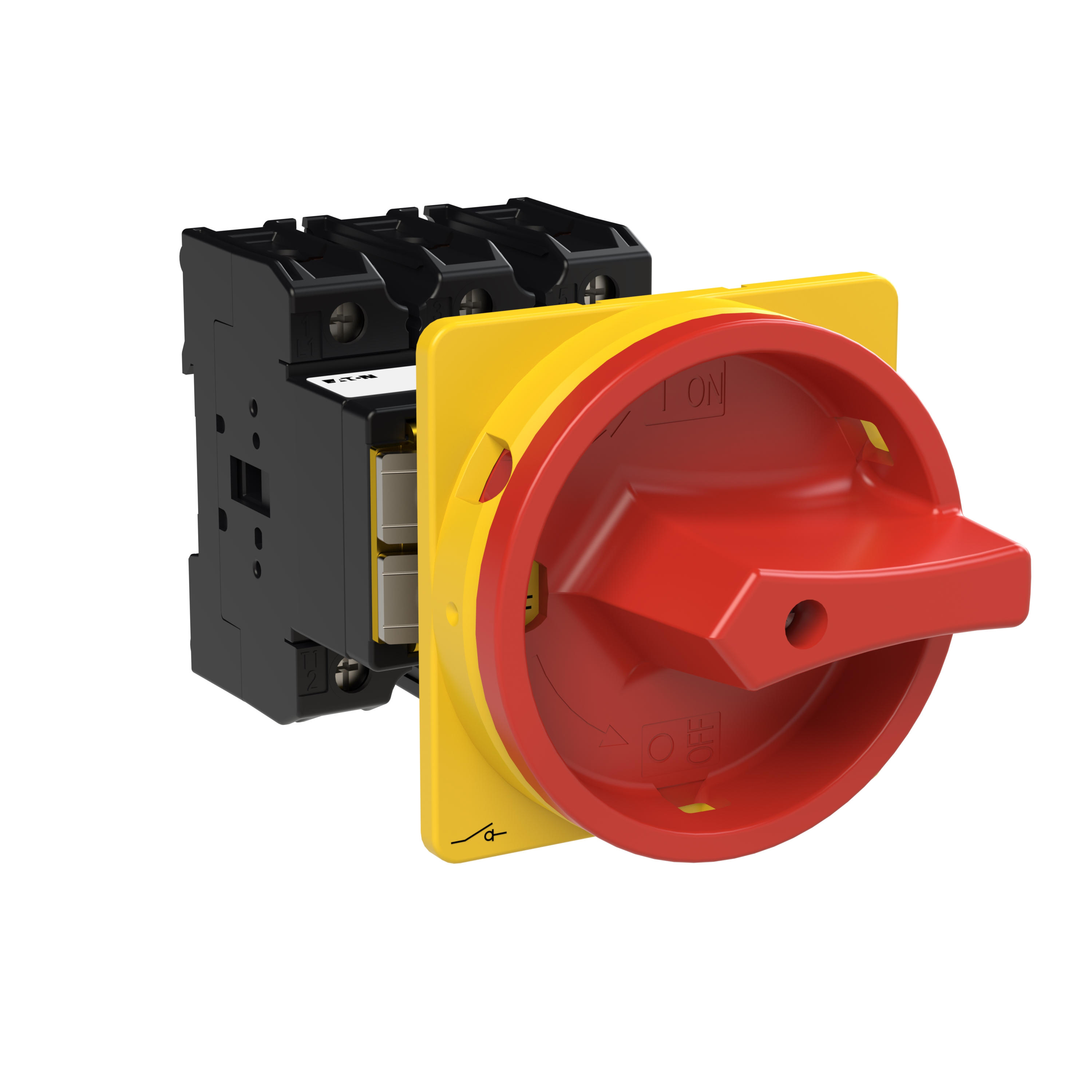

Kambryter P3 80A 3p type V/SVB P3-80/V/SVB
Product number
1414065
P3 Hovedbryter, 80 A,Baksidig montasje, 3 pole, Form V/SVB, Red, Door coupling rotary drive
Hovedbryter, Produkt område: Hovedbryter, Vedlikeholdsbryter, Produkt gruppe referanse:: P3, Stopp funksjon: Nød stopp funksjon, Med rød håndtak og gul låsering, Produktinformasjon: Hjelpekontakt or neutral leder utstyres av bruker., 3 pol, Lås: Låsbar i 0-stilling (Off), Beskyttelsesgrad: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, NEMA12
Product details
Technical specifications
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationyes
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage690 - 690 V
Rated permanent current Iu80 A
Rated permanent current at AC-23, 400 V80 A
Rated permanent current at AC-21, 400 V80 A
Rated operation power at AC-3, 400 V30 kW
Rated short-time withstand current lcw2 kA
Rated operation power at AC-23, 400 V30 kW
Switching power at 400 V55 kW
Product codes
SAPDHU532
El number1414065
Product number1414065
GTIN/EAN4015082963187
Manufacturer part numberEP-400963
Vendor material number1414065
Basic information
Package measurements (L x W x H)86 x 48 x 48 mm
Package volume0.198 l
Package weight0.507 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandEATON
Country of OriginGB United Kingdom
Customs tariff code85365000
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A33.6028
GWP uniteach
Data source for GWPEandoX
