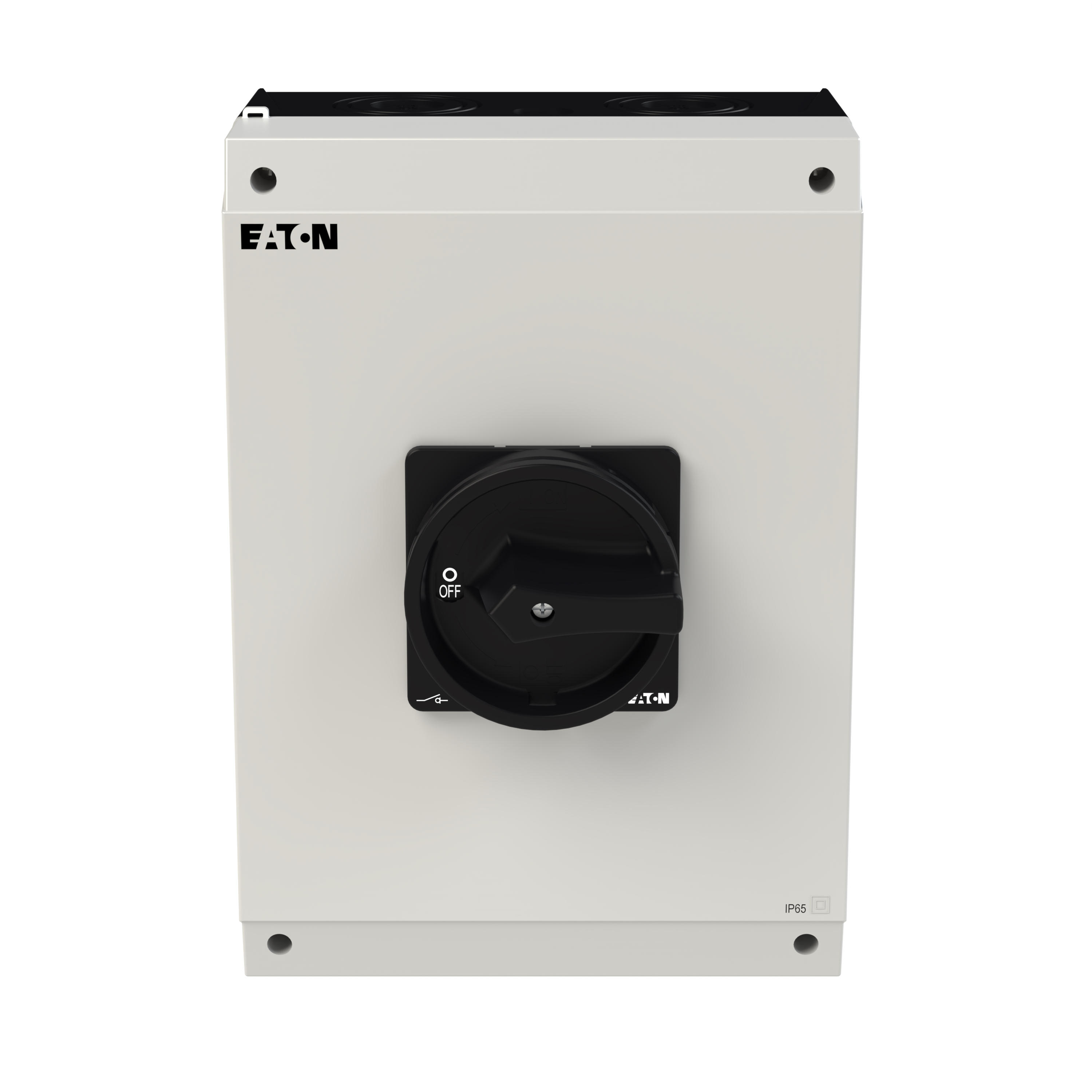

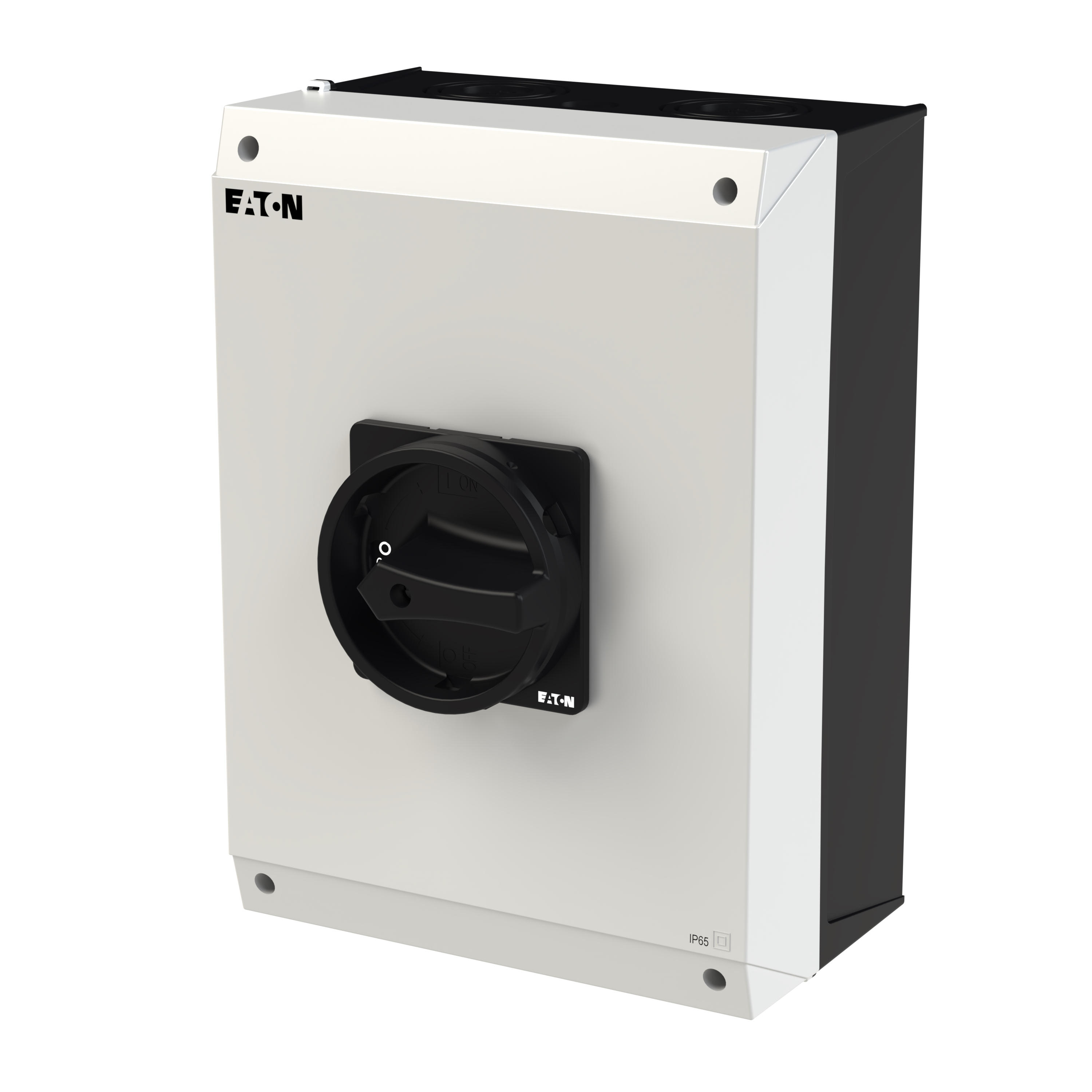

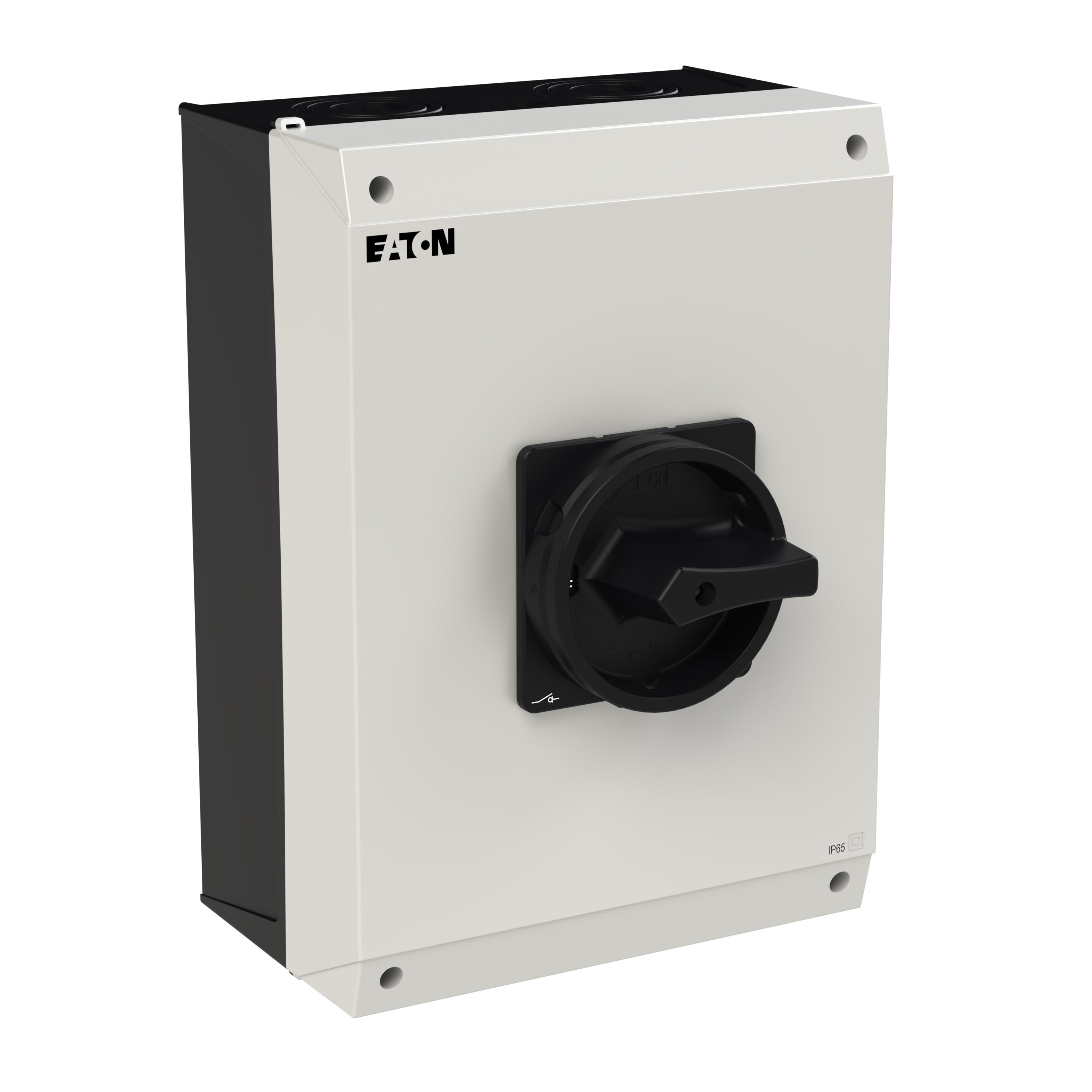

Kambryter P3 80A 4p typ I5/SVB P3-80/I5/SVB-SW/N
Product number
1414091
P3 Hovedbryter, 80 A,På montasje, 4 pole, Form I5/SVB, Black, Door coupling rotary drive
Hovedbryter, Produkt område: Hovedbryter, Vedlikeholdsbryter, Produkt gruppe referanse:: P3, Stopp funksjon: Stopp funksjon,med svart vrihåndtak og låsering, Produktinformasjon: Hjelpekontakt utstyres av bruker., 3 pol + N, Lås: Låsbar i 0-stilling (Off), Beskyttelsesgrad: IP65, Design: På-montasje, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
Product details
Technical specifications
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage690 - 690 V
Rated permanent current Iu80 A
Rated permanent current at AC-23, 400 V80 A
Rated permanent current at AC-21, 400 V80 A
Rated operation power at AC-3, 400 V30 kW
Rated short-time withstand current lcw2 kA
Rated operation power at AC-23, 400 V30 kW
Switching power at 400 V55 kW
Product codes
SAPDHU557
El number1414091
Product number1414091
GTIN/EAN4015082963637
Manufacturer part numberEP-400989
Vendor material number1414091
Basic information
Package measurements (L x W x H)295 x 210 x 190 mm
Package volume11.771 l
Package weight1.579 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandEATON
Country of OriginGB United Kingdom
Customs tariff code85365000
Documents (13)
Images
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A313.6088
GWP uniteach
Data source for GWPEandoX
