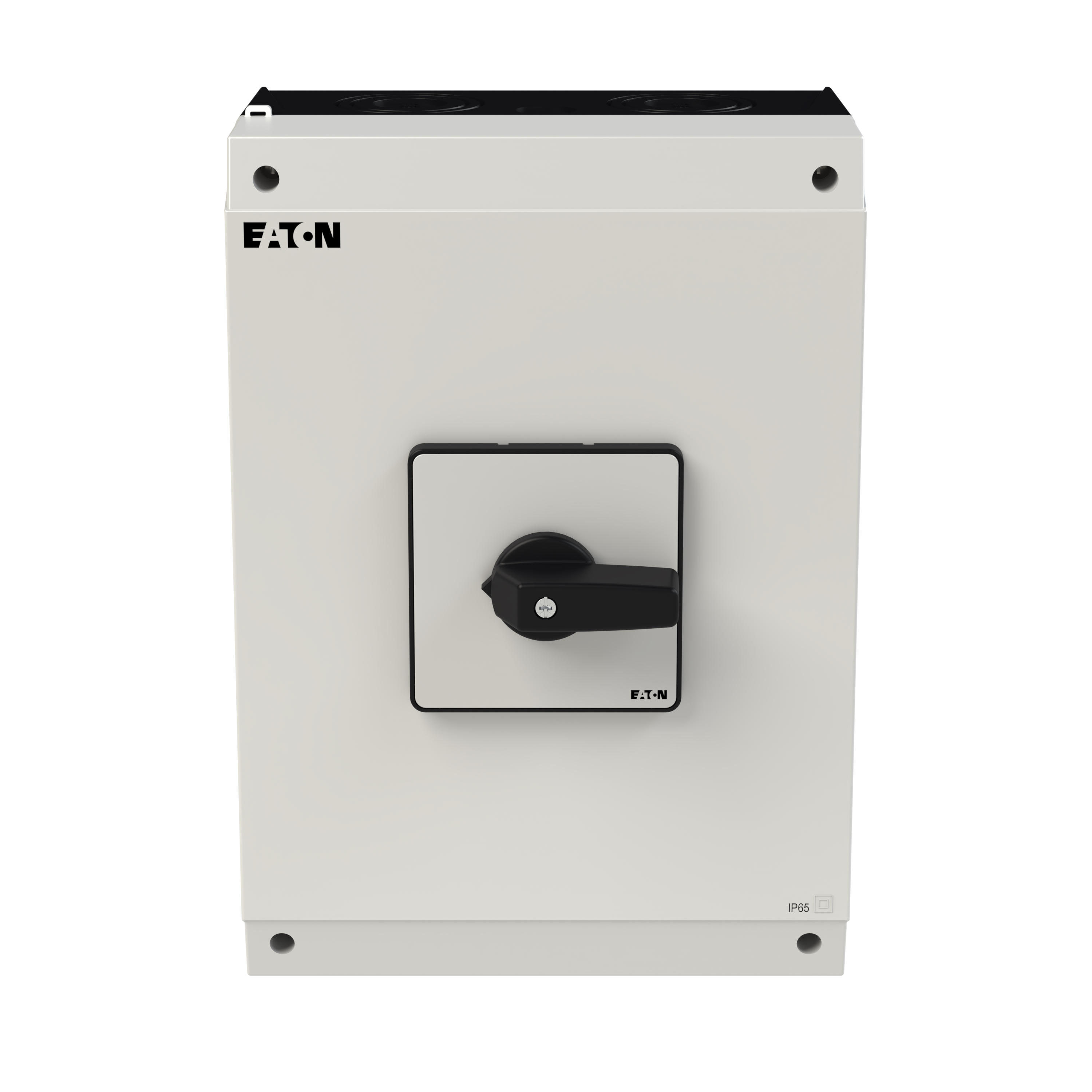

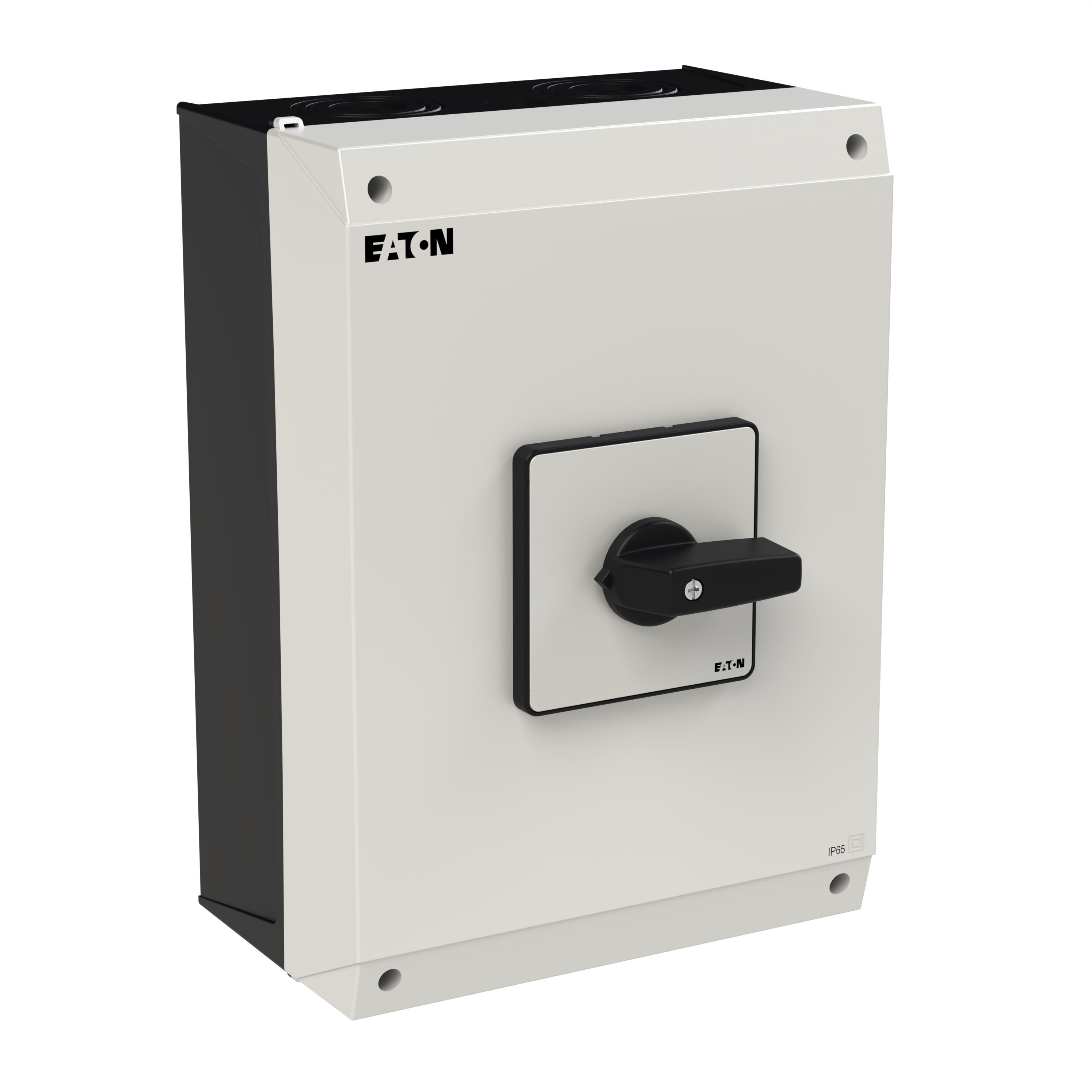

Kambryter P3 80A type I5 P3-80/I5/N
Product number
1414083
P3 Av/På-Switch, 80 A,På montasje, Form I5
Av/På-bryter, Produkt gruppe referanse:: P3, Beskyttelsesgrad: IP65, På-montasje
Product details
Technical specifications
Version as main switchno
Version as maintenance-/service switchno
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage690 - 690 V
Rated permanent current Iu80 A
Rated permanent current at AC-23, 400 V80 A
Rated permanent current at AC-21, 400 V80 A
Rated operation power at AC-3, 400 V30 kW
Rated short-time withstand current lcw2 kA
Rated operation power at AC-23, 400 V30 kW
Switching power at 400 V55 kW
Product codes
SAPDHU549
El number1414083
Product number1414083
GTIN/EAN4015082963453
Manufacturer part numberEP-400981
Vendor material number1414083
Basic information
Package measurements (L x W x H)295 x 210 x 280 mm
Package volume17.346 l
Package weight1.539 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandEATON
Country of OriginGB United Kingdom
Customs tariff code85365000
