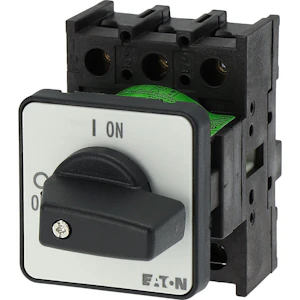

Kambryter, På/Av P1-32/E
Product number
1456110
P1-32/E
Kambryter, På/Av, Produkt rekkevidde Kambryter, På/Av, gruppereferanse: P1, med sort grep og frontplate, Informasjon vedrørende produktet: Hjelpekontakt or N-leder tilkobling monteres av bruker., 3 pol, Beskyttelsesgrad Front IP65, Design: innfelt montasje, Motor type AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Strøm: Iu = 32 A, Standarder IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Sikkerhetsbryter i henhold til IEC/EN 60947-3
Product details
Technical specifications
Version as main switchfalse
Version as maintenance-/service switchfalse
Version as safety switchfalse
Version as emergency stop installationfalse
Version as reversing switchfalse
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage690 ... 690 V
Rated permanent current Iu32 A
Rated permanent current at AC-23, 400 V32 A
Rated permanent current at AC-21, 400 V32 A
Rated operation power at AC-3, 400 V13 kW
Rated short-time withstand current lcw0.64 kA
Rated operation power at AC-23, 400 V15 kW
Switching power at 400 V15 kW
Product codes
SAPARG735
PLC1456110
STK1456110
GTIN/EAN4015080790655
Manufacturer part number079065
Vendor material number1456110
Basic information
Package measurements (L x W x H)95 x 49 x 70 mm
Package volume0.326 l
Package weight0.162 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121500
BrandEATON
