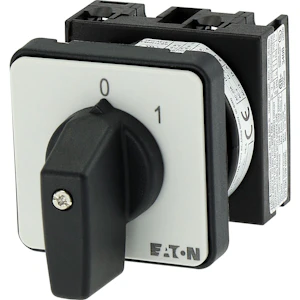

Kambryter, På/Av T0-1-15402/E
Product number
1456252
T0-1-15402/E
Kambryter, På/Av, Produkt rekkevidde Vendebryteres, Standarder IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Sikkerhetsbryter i henhold til IEC/EN 60947-3, gruppereferanse: T0, med sort grep og frontplate, Kontakter: 2, Beskyttelsesgrad Front IP65, Design: innfelt montasje, Betjeningsvinkel: 45 °, Betjeningstype: vedlikeholdt, Med 0 (AV) posisjon, 1 kontakter, Strøm: Iu= 20 A, front plate: 0-1
Product details
Technical specifications
Type of switchOn/off switch
Number of poles2
Max. rated operation voltage Ue AC690 V
Rated permanent current Iu20 A
Number of switch positions2
With zero (off) positionyes
With retraction in 0-positionno
Device constructionBuilt-in device
Width in number of modular spacings0
Suitable for floor mountingno
Suitable for front mountingyes
Suitable for distribution board installationno
Suitable for intermediate mountingno
Complete device in housingno
Type of control elementWing knob
Product codes
SAPGAJ867
El number1456252
Product number1456252
GTIN/EAN4015080530923
Manufacturer part number053092
Vendor material number1456252
Basic information
Package measurements (L x W x H)76 x 48 x 48 mm
Package volume0.175 l
Package weight0.103 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121503
BrandEATON
Country of OriginGB United Kingdom
Customs tariff code85365000
