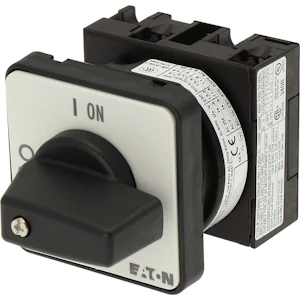

Kambryter, På/Av T0-1-8200/E
Product number
1456240
T0-1-8200/E
Kambryter, På/Av, Produkt rekkevidde Kambryter, På/Av, gruppereferanse: T0, med sort grep og frontplate, 1 pol, Beskyttelsesgrad Front IP65, Design: innfelt montasje, Betjeningsvinkel: 90 °, Betjeningstype: vedlikeholdt, front plate: 0-1, Motor type AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Strøm: Iu = 20 A, 1 kontakter, Standarder IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Sikkerhetsbryter i henhold til IEC/EN 60947-3
Product details
Technical specifications
Version as main switchno
Version as maintenance-/service switchno
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage690 - 690 V
Rated permanent current Iu20 A
Rated permanent current at AC-23, 400 V13.3 A
Rated permanent current at AC-21, 400 V20 A
Rated operation power at AC-3, 400 V5.5 kW
Rated short-time withstand current lcw0.32 kA
Rated operation power at AC-23, 400 V5.5 kW
Switching power at 400 V5.5 kW
Product codes
SAPGCV237
El number1456240
Product number1456240
GTIN/EAN4015080673521
Manufacturer part number067352
Vendor material number1456240
Basic information
Package measurements (L x W x H)76 x 48 x 48 mm
Package volume0.175 l
Package weight0.093 kg
Base uniteach
Package units1 / 70 / 1400
Usage quantity1
UNSPSC39121503
BrandEATON
Country of OriginGB United Kingdom
Customs tariff code85365000
