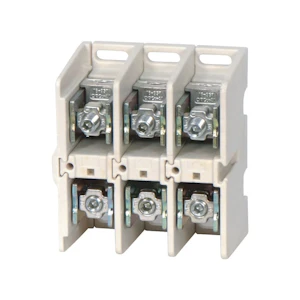

KOBLINGSSTYKKE 3-POL 250A K95/3
Product number
4132412
K95/3
Merkespenning: Ui = 1000V
IEC/EN 60439
VDE 0660 Del 500 eller EN 50021
Standard med tilkoblingsklemmer
for flatband på ene siden og kabel
på andre siden.
Ombyggbar for kabel på begge sider.
IEC/EN 60439
VDE 0660 Del 500 eller EN 50021
Standard med tilkoblingsklemmer
for flatband på ene siden og kabel
på andre siden.
Ombyggbar for kabel på begge sider.
Product details
Technical specifications
Number of poles3
Nominal current160 A
Connection typeScrewing
Mounting methodScrew
Number of inputs1
Number of outputs1
Suitable for solid conductorsfalse
Suitable for stranded conductorstrue
Suitable for fine strand conductorsfalse
Suitable for fine strand conductors without cable end sleevefalse
Suitable for extra fine-strand conductorsfalse
Suitable for extra fine-strand conductors without cable end sleevefalse
Conductor cross section, input16 ... 95 mm²
Conductor cross section, output10 ... 95 mm²
Conductor cross section, input AWG6 ... 6 mm²
Product codes
SAPGAY711
PLC4132412
STK4132412
GTIN/EAN4015080250173
Manufacturer part number25017
Vendor material number4132412
Basic information
Package measurements (L x W x H)100 x 99 x 115 mm
Package volume1.139 l
Package weight1.428 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121408
BrandEATON
