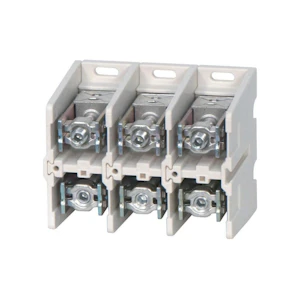

KOBLINGSSTYKKE 3-POL 400A K240/3
Product number
4132418
K240/3
Tilkoplingsklemmer for flatband og
kabel.
Ombyggbar for kabel på begge
sider.
Tiltrekningsmoment = 40 Nm
Merkespenning: Ui = 1000 V
400 A
kabel.
Ombyggbar for kabel på begge
sider.
Tiltrekningsmoment = 40 Nm
Merkespenning: Ui = 1000 V
400 A
Product details
Technical specifications
Number of poles3
Nominal current400 A
Connection typeScrewing
Mounting methodScrew
Number of inputs1
Number of outputs2
Suitable for solid conductorsfalse
Suitable for stranded conductorstrue
Suitable for fine strand conductorstrue
Suitable for fine strand conductors without cable end sleevefalse
Suitable for extra fine-strand conductorsfalse
Suitable for extra fine-strand conductors without cable end sleevefalse
Conductor cross section, input25 ... 120 mm²
Conductor cross section, output25 ... 240 mm²
Conductor cross section, input AWG4 ... 4 mm²
Product codes
SAPGAI152
PLC4132418
STK4132418
GTIN/EAN4015080392552
Manufacturer part number039255
Vendor material number4132418
Basic information
Package measurements (L x W x H)100 x 144 x 115 mm
Package volume1.656 l
Package weight2.711 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121408
BrandEATON
