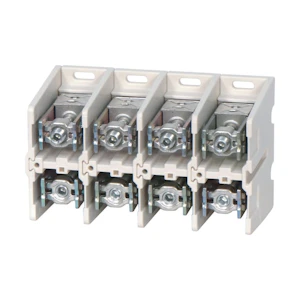

KOBLINGSSTYKKE 4-POL 400A K240/4
Product number
4132419
K240/4
Tilkoplingsklemmer for flatband og
kabel.
Ombyggbar for kabel på begge
sider.
Tiltrekningsmoment = 40 Nm
Merkespenning: Ui = 1000 V
400 A
kabel.
Ombyggbar for kabel på begge
sider.
Tiltrekningsmoment = 40 Nm
Merkespenning: Ui = 1000 V
400 A
Product details
Technical specifications
Number of poles4
Nominal current400 A
Connection typeScrewing
Mounting methodScrew
Number of inputs1
Number of outputs2
Suitable for solid conductorsfalse
Suitable for stranded conductorstrue
Suitable for fine strand conductorstrue
Suitable for fine strand conductors without cable end sleevefalse
Suitable for extra fine-strand conductorsfalse
Suitable for extra fine-strand conductors without cable end sleevefalse
Conductor cross section, input25 ... 240 mm²
Conductor cross section, output25 ... 240 mm²
Conductor cross section, input AWG4 ... 500 mm²
Product codes
SAPGAC192
PLC4132419
STK4132419
GTIN/EAN4015080416289
Manufacturer part number041628
Vendor material number4132419
Basic information
Package measurements (L x W x H)100 x 190 x 115 mm
Package volume2.185 l
Package weight3.576 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121408
BrandEATON
