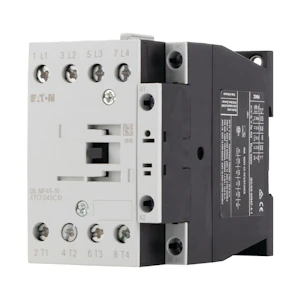

Kontaktor 4p. 230V 50Hz DILMP45-10(230V50HZ,240V60HZ)
Product number
4130405
Kontaktor, 4 poler, 45 A, 1 N/O, 230 V 50 Hz, 240 V 60 Hz
DILMP....
4 Pol Kontaktor
DILMP20 IP20
DILMP32-45 IP00
IEC/EN 60947, VDE 0660, UL, CSA.
Samme tilbehør som 3p. DILM
Dempeledd intrigert i DC-kontaktor
Belastning AC1=45A
Motorbelastning AC3=25A
Moment hoved / hjelpekl.=3Nm / 1,2Nm
HxBxD = 58x85x98
DILMP45
4 Pol Kontaktor
DILMP20 IP20
DILMP32-45 IP00
IEC/EN 60947, VDE 0660, UL, CSA.
Samme tilbehør som 3p. DILM
Dempeledd intrigert i DC-kontaktor
Belastning AC1=45A
Motorbelastning AC3=25A
Moment hoved / hjelpekl.=3Nm / 1,2Nm
HxBxD = 58x85x98
DILMP45
Product details
Technical specifications
Rated control supply voltage AC 50 Hz230 ... 230 V
Rated control supply voltage AC 60 Hz240 ... 240 V
Rated control supply voltage DC0 ... 0 V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact4
Type of electrical connection of main circuitScrew connection
Operating voltage AC 50 Hz24 ... 690 V
Operating voltage AC 60 Hz24 ... 690 V
Rated operation current Ie at AC-1, 400 V45 A
Rated operation current Ie at AC-3, 400 V25 A
Rated operation power at AC-3, 400 V11 kW
Rated operation current Ie at AC-4, 400 V15 A
Rated operation power at AC-4, 400 V7 kW
Rated operation power NEMA11 kW
Product codes
SAPGDB361
PLC4130405
STK4130405
GTIN/EAN4015081093960
Manufacturer part number109826
Vendor material number4130405
Basic information
Package measurements (L x W x H)116 x 100 x 73 mm
Package volume0.847 l
Package weight0.54 kg
Base uniteach
Package units1 / 1 / 720
Usage quantity–
UNSPSC39121529
BrandEATON
