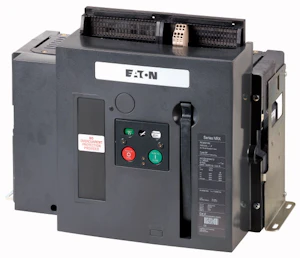

Lastbryter INX40N N 85kA 4-pol 2000 A fast
Product number
4398446
INX40N4-20F-1
INX40N4-2000A, fast
Product details
Technical specifications
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage690 - 690 V
Rated permanent current Iu2000 A
Rated permanent current at AC-23, 400 V2000 A
Rated permanent current at AC-21, 400 V0 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw85 kA
Rated operation power at AC-23, 400 V0 kW
Switching power at 400 V0 kW
Product codes
SAPCWA547
El number4398446
Product number4398446
GTIN/EAN4015081796236
Manufacturer part number184084
Vendor material number184084
Basic information
Package measurements (L x W x H)584 x 521 x 597 mm
Package volume181.646 l
Package weight56 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandEATON
Country of OriginUS United States
Customs tariff code85362000
