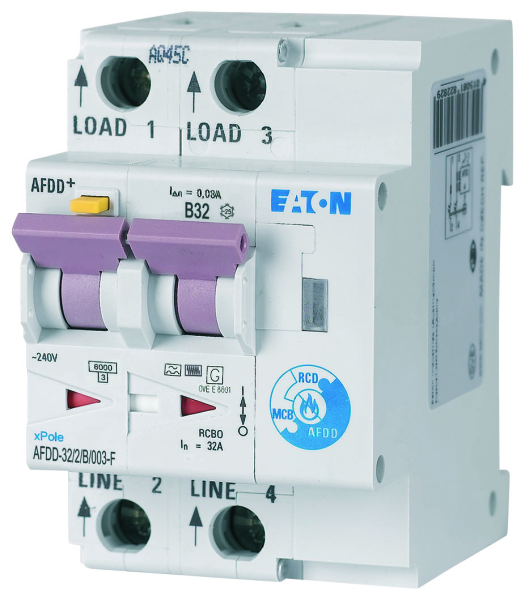

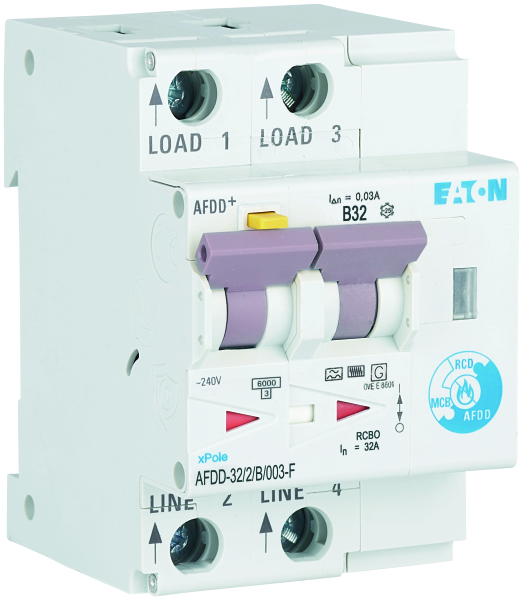

Lysbuevern 32A 2p B 30mA F
Product number
1601017
AFDD-32/2/B/003-F
Jordfeilautomat med lysbuevern. AFDD detekterer og kobler ut ved serielysbue, parallellysbue og lysbue til jord. OL = I2 1,3 spesielt tilpasset boliginstallasjoner. LI/A = tidsforsinket 10 ms. OBS! Tre moduler bredde. Samleskinne elnr: 1601457 (EVG-2PHAS/4AFDD)
Product details
Technical specifications
Rated voltage230 V
Rated current32 A
Rated fault current0.03 A
Leakage current typeOther
Current limiting class3
Rated short-circuit breaking capacity according to EN 610096 kA
Rated short-circuit breaking capacity according to IEC 60947-20 kA
Release characteristicB
Concurrently switching neutral conductorno
Overvoltage category3
Pollution degree2
Width in number of modular spacings3
Built-in depth67 mm
Additional equipment attached at deliveryOther
Rated switch current auxiliary device0 A
Product codes
SAPCWA909
El number1601017
Product number1601017
GTIN/EAN4015081823338
Manufacturer part number187284
Vendor material number1601017
Basic information
Package measurements (L x W x H)90 x 75 x 50 mm
Package volume0.34 l
Package weight0.32 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC1601450
BrandEATON
Country of OriginCZ Czech Republic
Customs tariff code85362000
