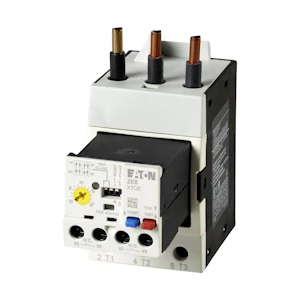

Motorvernrele 20-100A ZEB65-100
Product number
4137373
ZEB65-100
Overlastrelee, Produktrekkevidde: elektronisk Overlastrelees ZEB, fasefeil sensitiv: IEC/EN 60947, VDE 0660 del 102, Beskrivelse: Test/av knapp, Reset trykknapp, Manuel/auto reset kan velges, Beskyttelse mot tunge startklasser (Class 10A-30), Montasjetype: Direktemontasje, Hjelpekontakter N/O = Normalt åpen: 1 N/O, Hjelpekontakter N/C = Normalt lukket: 1 N/C, brukes med: DILM40, DILM50, DILM65, DILM72, DIULM40, DIULM50, DIULM65, SDAINLM70, SDAINLM90, SDAINLM115, Standarder: IEC/EN 60947, VDE 0660, UL, CSA, Beskyttelsesgrad: IP20
Product details
Technical specifications
Mounting methodDirect attachment
Type of electrical connection of main circuitScrew connection
Adjustable current range20 - 100 A
External power supply requiredno
Rated control supply voltage AC 50 Hz0 - 0 V
Rated control supply voltage AC 60 Hz0 - 0 V
Rated control supply voltage DC0 - 0 V
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as change-over contact0
Voltage type (operating voltage)AC
Operating voltage AC 50 Hz230 - 690 V
Operating voltage AC 60 Hz230 - 690 V
Operating voltage DC0 - 0 V
Release classAdjustable
Product codes
SAPCXU374
El number4137373
Product number4137373
GTIN/EAN4015081332847
Manufacturer part number136504
Vendor material number4137373
Basic information
Package measurements (L x W x H)185 x 168 x 80 mm
Package volume2.486 l
Package weight0.778 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandEATON
Country of OriginDO Dominican Republic
Customs tariff code85363000
